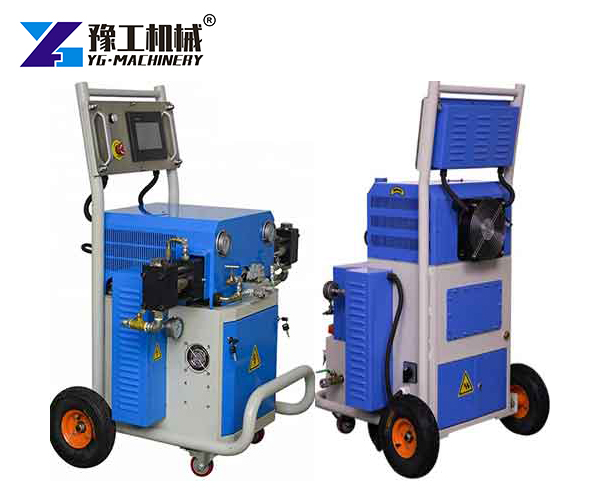

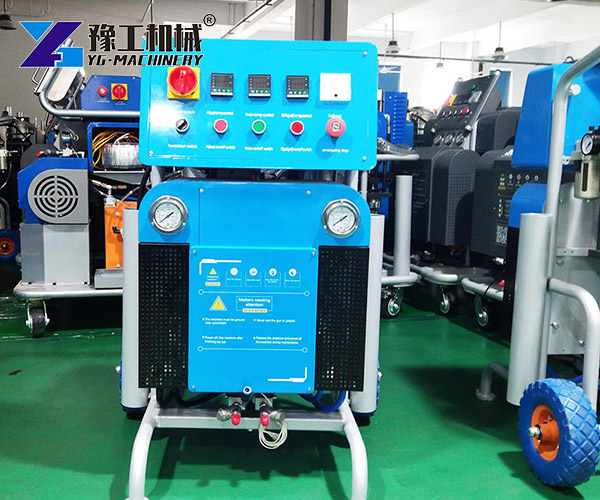

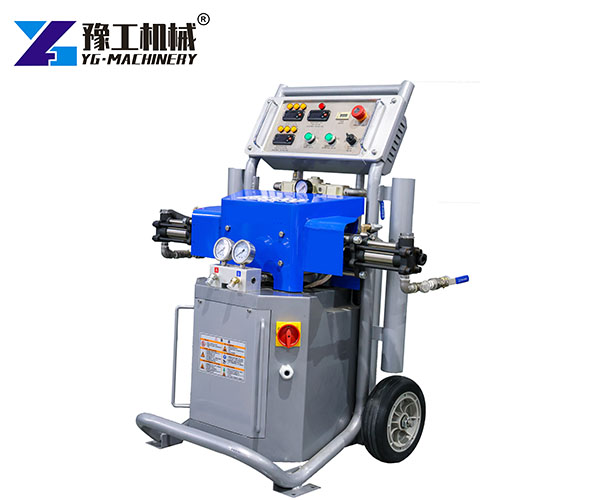

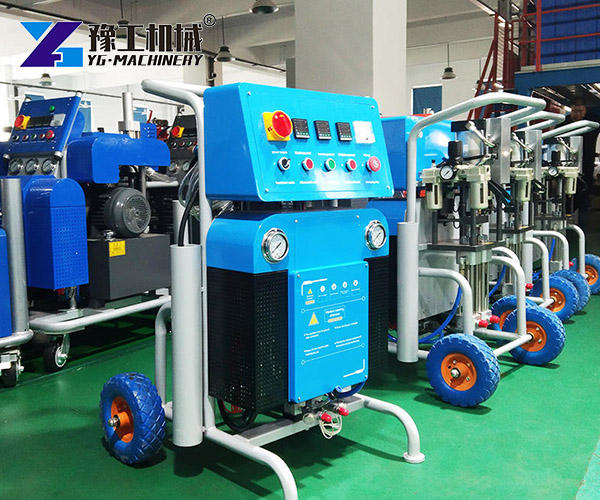

Polyurethane Spray Foam Machine for Insulation Work

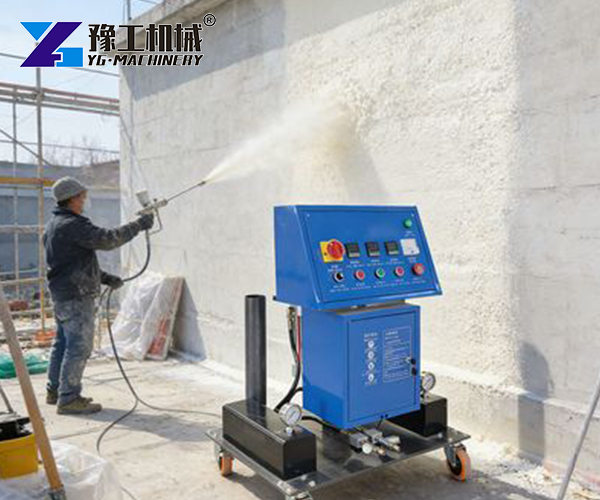

A Polyurethane Spray Foam Machine is used to apply polyurethane foam to surfaces that need insulation or sealing. It is suitable for construction teams, insulation contractors, and industrial service companies. The equipment prepares the materials and delivers them to a spray gun for application.
Choosing the right polyurethane foam insulation equipment involves more than checking the purchase price. You need to consider the type of foam, the working environment, the available utilities, and the size of each project. These details affect equipment configuration and daily operation.
Different machine configurations suit different project needs. Contractors should compare the available systems based on their project plans, material requirements, and site conditions. Before purchasing, confirm that the selected equipment matches the foam material, application method, and working environment.
Polyurethane Spray Machine Specifications
| Model | YG-H-T50 | YG-H5600T | YG-H-T40 | YG-H5600 | YG-Q30 | YG-IIIH |
| Power Supply | 380V/50Hz | 380V/50Hz | 380V/50Hz | 380V/50Hz | 380V/220V | 380V/220V |
| Heating Power | 25 kW | 25 kW | 22 kW | 22 kW | 15 kW | 9.5 kW |
| Total Power | 29 kW | 29 kW | 26 kW | 26 kW | 15.5 kW | 9.5 kW |
| Drive Type | Hydraulic | Hydraulic | Hydraulic | Hydraulic | Pneumatic | Pneumatic |
| Material Output | 2–8 kg/min | 2–8 kg/min | 2–12 kg/min | 2–12 kg/min | 2–10 kg/min | 2–10 kg/min |
| Air Supply | ≥0.6 m³/min | ≥0.6 m³/min | ≥0.6 m³/min | ≥0.6 m³/min | 0.5–1 MPa ≥1 m³/min | 0.5–0.8 MPa ≥0.9 m³/min |
| Max Output Pressure | 36 MPa | 36 MPa | 36 MPa | 36 MPa | 28 MPa | 25 MPa |
| A/B Ratio | 1:01 | 1:01 | 1:01 | 1:01 | 1:01 | 1:01 |
| Heating Temperature Range | 0–85°C | 0–85°C | 0–85°C | 0–85°C | 0–85°C | 0–80°C |
| Packaging Size (LWH) | 1350×1150×1650 mm | 1350×1150×1650 mm | 1250×1050×1500 mm | 1250×1050×1500 mm | 850×850×1650 mm | 850×850×1650 mm |
| Gross Weight | 420 kg | 420 kg | 350 kg | 350 kg | 200 kg | 205 kg |
| Air Compressor | – | 4 kW, 0.5 m³/min | 4 kW, 0.5 m³/min | – | 7.5 kW, 0.9–1.0 m³/min, 8 bar | – |
PU Spray Foam Machine: Components and Site Preparation
A spraying system depends on several parts working together. Understanding their roles helps operators prepare the site and identify potential problems before production starts.
1. Material supply system
The supply system moves the coating or foam components toward the machine. Keep the material containers clean and follow the supplier’s storage instructions. Check material compatibility before changing to another formulation.
2. Heating system
The heating system prepares the materials for spraying. Suitable temperature control helps maintain the required material flow. Operators should follow the chemical manufacturer’s temperature instructions rather than making adjustments based on appearance alone.
3. Material delivery system
The material delivery system moves the components through the equipment toward the spray gun. Check the site utilities and installation conditions before choosing a suitable configuration. Regular inspection also helps operators identify leaks or other problems before work begins.
4. Spray gun and hoses
The hoses carry the materials to the spray gun, which directs them onto the target surface. Inspect connections for leaks and check the gun for blockage before starting work. Clean the equipment according to the manufacturer’s procedure after use.
A suitable Polyurethane Spray Foam Equipment setup should match the material supplier’s requirements and the actual job site. A mismatch between the material, machine, and spray gun may lead to unstable application or unnecessary downtime.
Before buying polyurethane spray foam machine, confirm that the machine, spray gun, and selected material are compatible with each other.
Polyurethane Spray Machine Price: What Affects the Quote?
The Polyurethane Spray Machine Price depends on more than the equipment itself. Buyers should review the complete supply scope to understand the total purchase cost.
Key factors include:
- Machine configuration: The selected system and included components affect the quotation.
- Included accessories: Ask whether hoses, spray guns, connectors, and an air compressor are included or supplied separately.
- Power and air supply: Local electricity standards and available compressed air may affect installation needs.
- Shipping and packaging: Destination, transport method, and delivery arrangements influence the final landed cost.
- Technical support: Confirm the availability of operating instructions, spare parts, and technical assistance.
When comparing a PU Foam Spray Machine For Sale, request a quotation that clearly lists the machine configuration, included accessories, excluded items, and shipping terms. This makes offers easier to compare and reduces the risk of unexpected costs after ordering.
PU Spray Foam Machine: Operating Checks Before Spraying
Good preparation helps operators maintain consistent work and reduce avoidable interruptions. Establish a repeatable inspection process before each job.
Before starting
- Check the material labels, storage condition, and compatibility with the equipment.
- Inspect hoses, connections, and the spray gun for visible damage or blockage.
- Confirm that the power supply and compressed air meet the selected configuration’s requirements.
- Wear suitable protective equipment and prepare adequate ventilation and site controls.
During application
- Follow the chemical supplier’s instructions for mixing, temperature, and spraying.
- Apply the material using a consistent technique that suits the surface and required coating thickness.
- Watch for leaks, abnormal pressure changes, or uneven material delivery.
- Stop the machine if you notice an unsafe condition or a suspected equipment fault.
After each job
- Follow the manufacturer’s shutdown and cleaning instructions.
- Relieve pressure only through the approved procedure.
- Keep material residue from hardening in parts that require cleaning.
- Record maintenance issues and replace worn parts with suitable components.
Polyurethane chemicals can present inhalation, skin-contact, and other exposure risks. Operators should follow the material safety data sheet, use the specified protective equipment, and meet local workplace safety requirements. Never open a pressurized line or dismantle a component before following the approved pressure-release procedure.
Polyurethane Spray Foam Machine from YG Machinery
YG Machinery supplies machinery for construction and industrial applications. When sourcing a Polyurethane Spray Foam Machine, provide details about the insulation or coating task, the material you plan to use, your local power supply, and the accessories you require.
This information allows the sales team to review the available configuration and prepare a quotation based on your project needs. You can also ask for clarification on compressor requirements, included components, delivery arrangements, and operating support.【WhatsApp/WeChat/Phone/Skype】+86 13937183602
