Concrete Pump Truck for Flexible Concrete Placement

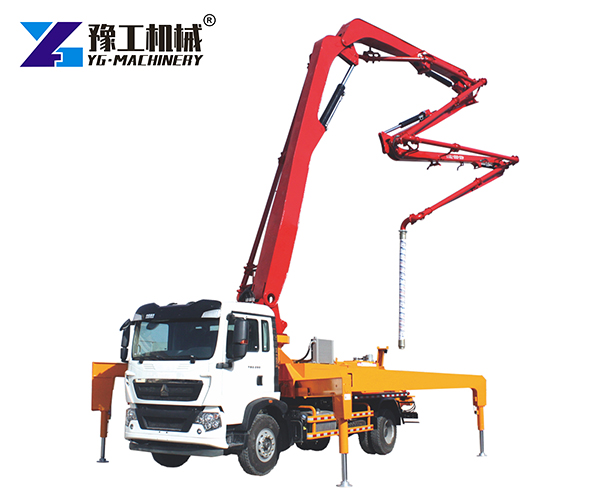

A Concrete Pump Truck provides a direct way to transfer fresh concrete from the supply point to the required pouring area. Its truck-mounted design combines concrete pumping equipment with a hydraulic placing boom, allowing operators to deliver concrete across different working areas.
Construction teams can use this equipment for building foundations, floor slabs, columns, and elevated structures. The boom helps reach areas behind obstacles or above ground level, while the mobile chassis supports transportation between job sites.
Before selecting a machine, evaluate the layout of the construction site, the distance to the pouring point, and the space needed for truck setup. A suitable configuration allows the equipment to match the practical demands of each project.
Specifications of Concrete Pump Truck
YG Machinery offers different truck mounted concrete pumping configurations for various construction requirements.
| Model | YG 22 | YG 25 | YG 30 | YG 38 | YG 42 | YG 50 | ||
| Whole truck | Drive way | 4×2 | 4×2 | 4×2 | 6×4 | 6×4 | 6×4 | |
| Output power/speed (kw/rpm) | 147/2000 | 147/2000 | 177/2000 | 243/2100 | 243/2100 | 243/2100 | ||
| Tire size | 9.00R20 | 9.00R20 | 11.00R20 | 11.00R20 | 11.00R20 | 11.00R20 | ||
| Arm & leg | Vertical height (m) | 21.9 | 25.5 | 29.7 | 38 | 40.1 | 50 | |
| Horizontal length (m) | 18.1 | 21.7 | 25.9 | 34.1 | 36 | 46 | ||
| Vertical depth (m) | 15.5 | 22.8 | 23.6 | 36.2 | ||||
| Fold type | M (three arms) | M (four arms) | M (four arms) | 5RZ | 5RZ | 6RZ | ||
| Rotary angle (°) | ±360 | ±360 | ±360 | ±360 | ±360 | ±360 | ||
| Pumping system | Theoretical pumping pressure (MPa) | Low pressure | 8.5 | 8.5 | 8.5 | 8 | 8 | 8 |
| High pressure | 10.5 | 10.5 | 10.5 | 12 | 12 | 12 | ||
| Distribution valve | S valve | S valve | S valve | S valve | S valve | S valve | ||
| Delivery cylinder inner diameter/stroke (mm) | 200/1200 | 200/1200 | 230/1450 | 230/1600 | 230/1650 | 260/1600 | ||
| Hopper capacity (m3) | 0.65 | 0.65 | 0.65 | 0.5 | 0.5 | 0.6 | ||
| Feeding height (mm) | 1450 | 1450 | 1450 | 1450 | 1450 | 1450 | ||
| Pipe diameter (mm) | 125 | 125 | 125 | 125 | 125 | 125 | ||
| Maximum aggregate size (mm) | 40 | 40 | 40 | 40 | 40 | 40 | ||
How a Truck Mounted Concrete Boom Pump Works
A Truck Mounted Concrete Boom Pump uses a pumping system to move fresh concrete through delivery pipes. Its hydraulic boom directs the concrete toward the required pouring location.
The operating process involves four main steps:
- Feeding: Fresh concrete enters the hopper from a concrete supply vehicle or another suitable source.
- Pumping: The pumping system moves concrete into the delivery pipeline.
- Boom positioning: The operator uses hydraulic controls to position the boom.
- Concrete placement: Concrete flows through the end hose into the required area.
Concrete mix quality and proper pipeline setup are important for smooth operation. The operator should check the equipment and delivery route before pumping begins.
Advantages of a Concrete Boom Pump Truck
A concrete pumping truck offers practical benefits for projects that require concrete placement across large or difficult areas.
- Extended reach: The boom allows concrete delivery to elevated floors and locations that are difficult to access directly.
- Flexible placement: Operators can direct the end hose toward different pouring points without moving the truck for every position.
- Less manual handling: Pumping reduces the need to carry concrete manually over long distances.
- Movement between sites: The truck can travel between suitable job sites, making it useful for contractors handling several construction projects.
Actual performance depends on site conditions, concrete properties, pipeline arrangements, and equipment setup. Proper planning remains essential for effective operation.
Concrete Boom Pump Truck Applications
This equipment supports construction projects that require controlled concrete placement at specific locations.
- Residential and commercial buildings: Contractors can use it for foundations, columns, beams, and floor slabs.
- Bridge construction: The boom can deliver concrete to structural sections where direct access is limited.

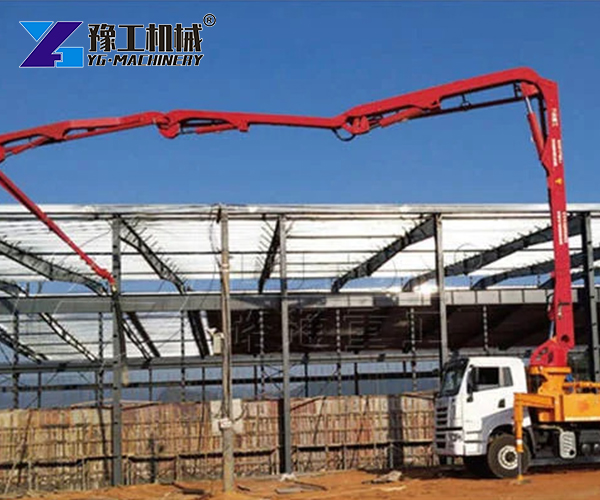

- Industrial facilities: Warehouses and factories may require concrete placement across large floors or around structural obstacles.
- Infrastructure projects: Suitable configurations can support concrete work at road structures and other civil engineering sites.
Before selecting a machine, check the working area, ground conditions, road access, and required clearance for boom deployment.
Choosing a Suitable Concrete Pump Truck
Selecting equipment involves more than comparing boom heights. Consider the actual demands of your project before requesting a quotation.
- Reach requirements: Calculate the vertical height and horizontal distance from the proposed truck position to the pouring point.
- Site access: Check road width, turning space, ground conditions, and the room needed to deploy the boom and support legs.
- Concrete supply: Confirm that the concrete mix, aggregate size, and delivery arrangements suit the pumping system.
- Project schedule: Estimate concrete demand, pouring frequency, and the number of sites the equipment will serve.
- Service arrangements: Review spare parts availability, technical support, warranty terms, and local maintenance options.

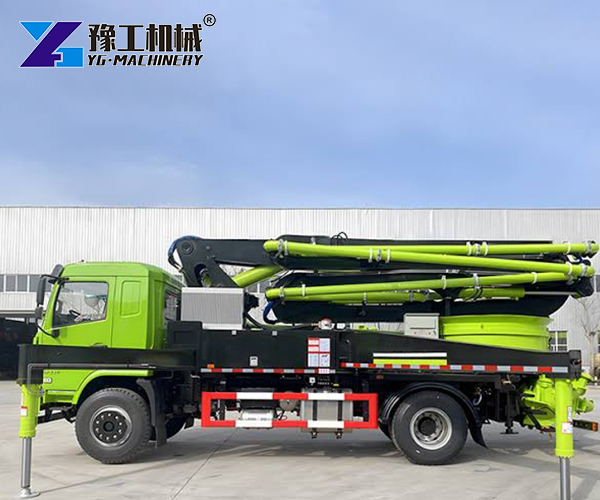

A Mobile Concrete Pump Truck may suit contractors who need to move equipment between projects. Share your working conditions with the supplier to identify an appropriate configuration.
Concrete Pump Truck Operation and Maintenance
Regular maintenance supports safe operation and helps prevent avoidable downtime. Follow the manufacturer’s instructions and use trained personnel for inspections and servicing.
- Inspect hydraulic components: Check hoses, connections, and visible hydraulic parts for leaks or damage.
- Check the boom and supports: Examine structural parts, support legs, and related components before operation.
- Inspect delivery pipes: Look for worn pipes, damaged clamps, and loose connections.
- Clean the pumping system: Remove concrete residue according to the approved cleaning procedure after each job.
- Keep maintenance records: Record inspections, servicing, and component replacements to support future maintenance planning.
Never disconnect a pressurized pipeline. Shut down the equipment and release pressure according to the manufacturer’s procedures before performing maintenance.
FAQ About Concrete Pump Trucks
Q: What should operators check before starting a pumping job?
A: Confirm that the working area is suitable, the equipment is stable, the pipeline connections are secure, and the concrete supply is ready. Operators should also review site hazards and follow the manufacturer’s operating instructions.
Q: Can a pump truck work with concrete from an external supplier?
A: Yes. The concrete mix, aggregate size, and delivery arrangements must meet the pumping equipment’s requirements.
Q: What information should overseas customers provide when requesting a quotation?
A: Include the destination country, intended application, required boom reach, project conditions, and preferred configuration. Shipping and service requirements are also useful when preparing a purchase plan.
Contact YG Machinery for Concrete Pumping Equipment
YG Machinery supplies construction machinery for different project requirements. Its team can discuss equipment configurations, shipping arrangements, and technical support based on your application.
For customers looking for a concrete pump truck for sale, YG Machinery can discuss suitable equipment options and provide a Concrete Pump Truck Price based on the selected configuration and project requirements.
The product range also includes other equipment for concrete preparation and delivery:
- Concrete Mixer Pump: Combines mixing and pumping functions for suitable construction applications.
- Trailer Concrete Pump: Provides a separate pumping unit for projects that use delivery pipes and hoses.
- Self Loading Concrete Mixer: Combines material loading, mixing, and transportation functions for on site concrete preparation.
Contact YG Machinery with your project details to request product information and a quotation.【WhatsApp/WeChat/Phone/Skype】+86 13937183602
