Mud, sludge, sand, and other deposits can build up on the bottom of lakes, ponds, canals, reservoirs, and wastewater areas. Manual cleaning can be slow and may expose workers to difficult working conditions. An Underwater Dredging Robot provides a remote way to remove deposits from underwater areas. It combines a dredging pump, hydraulic system, control system, and other working parts to move material from the bottom to a suitable discharge point. This type of robotic dredge is useful for projects that need regular underwater cleaning.
Specifications of Underwater Dredging Robot
| Parameter | YG500 | YG600 | YG700 | YG800 | YG900 | YG1200 |
| Robot Dimensions (mm) | 1500*500*650 | 1500*600*650 | 1600*700*650 | 1600*850*700 | 1650*960*750 | 1900*1200*750 |
| Dredging Width (mm) | 500 | 600 | 700 | 800 | 900 | Suitable for large culverts |
| Travel Speed (m/s) | 3–15 | 3–15 | 3–15 | 3–15 | 3–15 | 0–17 m/min |
| Pump Diameter (inch) | 3 | 3 | 4 | 4 | 4 | 4or6 |
| Pump Flow (m³/h) | 100 | 100 | 160 | 160 | 200 | 250 |
| Pump Head (m) | 0–30 | 0–30 | 0–25 | 0–25 | 0–25 | 0–30 (Horizontal: 100–150m) |
| Hydraulic Station Dimensions (mm) | 2200*1200*1700 | 2200*1200*1700 | 2200*1200*1700 | 2200*1200*1700 | 2200*1200*1700 | 2120*1240*1200 |
| Main Motor Power (kW) | 18 | 18 | 22 | 22 | 22 | 45KW (50KW) or Diesel 76KW (123KW) |
| Hydraulic System Pressure (Mpa) | 0–16 | 0–16 | 0–16 | 0–16 | 0–16 | Not specified |
| Particle Size (mm) | 15 | 15 | 40 | 40 | 50 | 0–40 (customizable) |
| Winch Speed (r/min) | 0–10 | 0–10 | 0–10 | 0–10 | 0–10 | 0–10 |
| Pipe Length (m) | 30–50 Optional | 30–50 Optional | 30–50 Optional | 30–50 Optional | 30–50 Optional | 30m/pack, 20kg pressure resistant, optional |
| Control System | Wireless Remote | Wireless Remote | Wireless Remote | Wireless Remote | Wireless Remote | Wireless Remote |
| Lighting System | Underwater LED*2 | Underwater LED*2 | Underwater LED*2 | Underwater LED*2 | Underwater LED*2 | Underwater LED*2 |
Sludge Cleaning Robot Working Process
The working process is designed to move underwater deposits from the bottom to a discharge area. The operator controls the machine from outside the water.
The basic process includes:
- Positioning.The machine is moved to the target dredging area.
- Material collection.The dredging system works on the sludge, mud, or loose deposits at the bottom.
- Pumping.The dredged material is taken into the discharge system.
- Material transfer.The material is moved through the connected pipeline to the planned discharge point.
- Area cleaning.The operator adjusts the working path and continues until the target area has been treated.
This process makes the sludge cleaning robot suitable for projects where direct worker access is difficult or where regular cleaning is needed.
Applications of Sludge Cleaning Robot
Underwater deposits can affect water flow, storage space, and the condition of a water body. A sludge cleaning robot can be used in different environments, depending on site conditions and the type of sediment.
Typical applications include:
- Lakes and ponds
- Canals and drainage channels
- Reservoirs
- Aquaculture areas

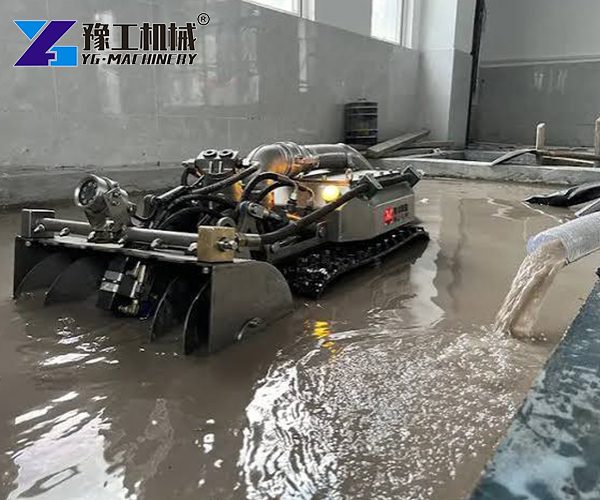

- Wastewater and treatment facilities
- Industrial water systems
A Lake Dredging Robot can be used for sediment removal in lakes and ponds. The equipment can also support routine cleaning before sediment builds up too heavily.
For sites that need a machine with a crawler-style structure, the Crawler Dredging Robot concept can provide a practical option for controlled movement over the working area. The final configuration should be selected according to the project layout and material conditions.
Remote Control Dredging Robot Operation And Safety
Remote operation is an important part of underwater dredging work. A Remote Control Dredging Robot allows the operator to control the machine without entering the water.
Before operation, check the site and equipment carefully:
- Inspect the machine and connection lines.
- Confirm that the working area is clear of people and obstacles.
- Check the hydraulic and electrical systems before starting.
- Keep the control unit in a safe position with a clear view of the working area.
- Stop the machine before carrying out inspection or maintenance.
- Avoid operating in conditions that may cause unsafe water movement or poor visibility.
Underwater Dredging Robot Selection Guide
The right model should be selected from the actual project requirements, rather than only from the machine appearance. Several factors should be reviewed before purchase.
- Working area:Check the size, shape, depth, and access conditions of the dredging site.
- Material type:Identify whether the bottom material mainly consists of sludge, mud, sand, or other deposits.
- Discharge distance:The location of the final discharge point affects pipeline and system selection.
- Operating environment:Consider water conditions, obstacles, available working space, and access for supporting equipment.
- Maintenance and support:Ask about spare parts, technical support, and long-term service before ordering.
Buyers often search for dredging robot price, but the machine price should be reviewed together with configuration, optional equipment, transport, and project requirements. A suitable configuration can help avoid unnecessary cost from choosing equipment that does not match the actual site.
Remote Control Dredging Robot Maintenance
Regular maintenance helps keep the equipment ready for repeated dredging work. A simple inspection routine can reduce problems during operation.
- Clean after use:Remove remaining mud and sediment from the working parts and pipes.
- Check the pump:Inspect for blockage, wear, or abnormal vibration after operation.
- Inspect hydraulic parts:Check hoses, connections, and visible leaks before the next job.
- Check the control system:Keep the remote control and related electrical components dry and clean.
- Inspect the pipeline:Make sure the discharge line is not blocked or damaged.
The frequency of maintenance should also be adjusted according to working conditions and operating hours.
Underwater Dredging Robot From YG Machinery
YG Machinery has more than 20 years of machinery manufacturing experience and supplies equipment to overseas markets. We support equipment selection, customized configurations, international delivery, and technical communication.
Our related products include Water Cannon Dust Suppression, Fog Cannon Machine, and Electric Road Sweeper for broader environmental cleaning and site management needs.
Send us your dredging location, sediment type, working area, and project requirements. Our engineers can recommend a suitable Underwater Dredging Robot and provide a detailed quotation.【WhatsApp/WeChat/Phone/Skype】+86 13937183602
