Solar farms need thousands of foundation piles. Each pile must go in fast, straight, and deep enough. A photovoltaic pile driver solves this problem. It replaces slow manual methods with hydraulic power. Contractors use these machines to keep projects on schedule and control costs. This article explains how the machine works, what it can do, and how to choose the right model for your site.
PV Pile Driver Specifications at a Glance
| Hydraulic photovoltaic pile driver | |||
| Overall dimensions | 4700*2100*2800mm | Drill pipe rotational speed | 180r/min |
| Track shoe width | 400mm | gradability | 30° |
| motor | 4108 | rock hardness | 6-20F |
| Drilling diameter | 80-500mm | Slide tilt angle | 120° |
| Drilling depth | 0-6m | Drill arm swing angle | left and right150° |
| Reducer torque | 13000n.m | Slide swing angle | left and right 150 ° |
| Mainstream pump | triple pump | Driving speed | 0-3km/h |
| oil pump | 40/40/32 | ||
Why a Photovoltaic Pile Driver Matters for Solar Farms
Utility-scale solar projects often require 3,000 to 10,000 steel piles per site. Manual driving cannot meet this volume. A dedicated machine changes the math.
Here are the main reasons contractors switch to solar pile driver:
Speed: Hydraulic systems install piles far faster than impact-only tools. Some projects report 30–50% higher efficiency than traditional methods.
Accuracy: Hydraulic force control keeps piles vertical. Poor alignment causes rework and delays later racking installation.
Ground adaptability: One machine can handle soft soil, gravel, and weathered rock with the right attachment.
A solar pile driving machine also reduces labor demand. One operator can complete work that previously needed a larger crew.

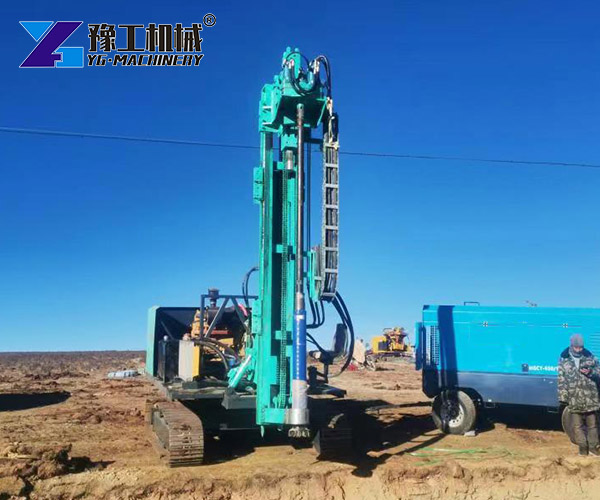

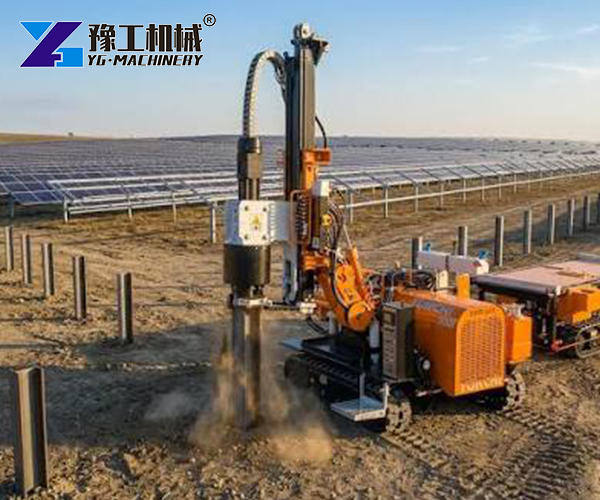

How a Solar Pile Driving Machine Works on Site
The machine uses a closed-loop hydraulic system. The engine drives the main pump. Pressurized oil then powers either a rotary head or a hydraulic hammer.
In rotary drilling mode, the head turns the drill pipe at 180 r/min. The feed system pushes downward at a controlled rate. The 13,000 N·m torque breaks through compact layers. The triple pump design allows independent control of rotation, feed, and track movement. This independence keeps the machine stable while positioning.
In hammer mode, the system strikes the pile directly. No pre-drilling is needed. This mode suits dense soil and gravel. The impact force drives the pile directly into the ground without pre-drilling. This method works well in dense soil and gravel.
Photovoltaic Pile Driver Features That Raise Productivity
Several design details separate a productive machine from a basic one.
Wide swing coverage. The drill arm swings left and right. The slide frame also tilts through a wide range. Operators can cover more piling points without moving the chassis. Fewer repositioning stops mean more piles per shift.

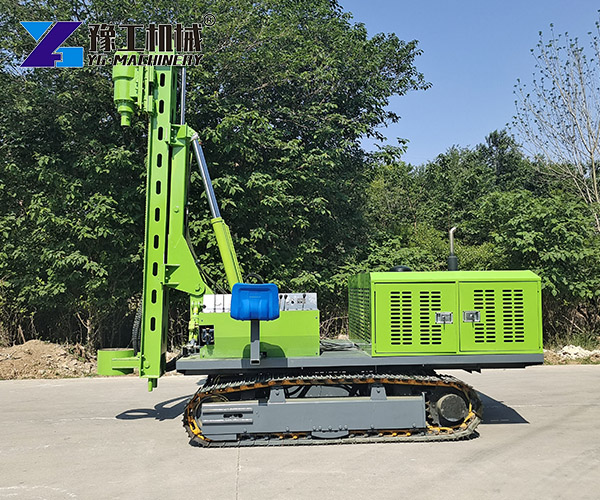

Crawler stability on uneven ground. Wide track shoes distribute weight evenly. The machine climbs slopes and turns in tight spaces. On hilly solar sites, this mobility keeps work moving when wheeled equipment cannot.
Custom support for difficult terrain. YG Machinery offers hydraulic adjustable support legs and a reinforced crawler chassis for slope projects. A Colombian contractor used this configuration on hilly ground with mixed clay, gravel, and weathered rock. The machine maintained pile alignment across the project area before the rainy season.
A PV pile driver with these features reduces downtime caused by repositioning and unstable footing.
Choosing the Right Machine for Your Ground Conditions
No single configuration fits every site. Check three factors before you buy a solar pile driver for sale.
Soil and rock hardness. Soft soil and farmland favor rotary drilling. Gravel and compacted layers may need hammer mode or pre-drilling. Rock above 20 F hardness requires a different approach entirely.
Pile depth and diameter. Confirm that the machine’s rated depth and diameter match your racking design. The standard 0–6 m depth covers most fixed-tilt arrays.
Site access and slope. Crawler chassis work best on uneven ground. Check the climbing angle against your steepest access road.
A Solar Pile Driver Machine with a triple-pump system gives operators independent control. This control matters when ground conditions change across a large site.

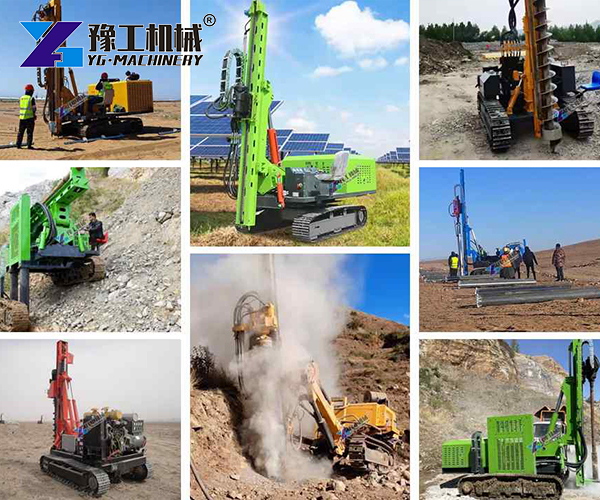

Real Results from the Field
Contractors measure success in piles per day and rework rate.
A Philippine contractor replaced traditional equipment with a YG hydraulic pile driver. Daily output rose from 50 piles to 120 piles. Pile tilt error dropped to within ±2 cm, and rework nearly disappeared. On a separate project in Türkiye, a contractor reported 40% higher construction efficiency than expected.
These results come from matching hydraulic force to soil conditions. They also come from stable chassis design and accurate positioning.
Maintenance Habits That Protect Your Investment
Rough handling shortens machine life. A few simple habits prevent costly failures.
Probe soil at low speed. Adjust rotation and feed pressure to the ground. Forcing full speed through gravel or compacted layers damages drill bits and bends rods.
Warm up the hydraulic system. Idle the engine before full-load work. Smooth lever movement protects pumps and seals.
Lift rods before swinging. Sharp rotation with a lowered rod strains the slewing bearing and reducer.
Check verticality every few piles. Small deviations grow into large alignment problems. Correct early.
YG Machinery: Your Partner for Solar Foundation Equipment
YG Machinery builds Photovoltaic Pile Driver solutions for contractors worldwide. The company has more than 20 years of export experience and serves customers in over 20 countries. Every machine undergoes inspection before shipping.
Beyond solar piling, YG Machinery supplies related drilling equipment for energy and infrastructure projects. The Fully Hydraulic Core Exploration Rig supports geological surveys and mineral exploration. The Horizontal Directional Drilling Machine handles trenchless pipe installation for underground utilities.
Need a reliable photovoltaic piling machine for your project? Contact YG Machinery for a configuration recommendation based on your soil report, pile design, and schedule.【WhatsApp/WeChat/Phone/Skype】+86 13937183602
