Dust Suppression Fog Cannon For Challenging Worksites
Many industrial operations create large amounts of dust during material handling, transportation, crushing, and outdoor storage. When dust spreads across a working area, it can affect visibility, equipment operation, and the surrounding environment.
A Dust Suppression Fog Cannon provides a targeted solution for controlling airborne particles in open areas. It produces fine mist and delivers it toward dust sources, helping reduce dust movement during daily operations.
Different workplaces have different dust conditions. Factors such as site size, material type, wind direction, and operation frequency all affect equipment selection. A suitable dust control system helps maintain cleaner working conditions and supports stable site management.
Dust Suppression Fog Cannon Specifications
| Model | YG-20 | YG-30 | YG-40 | YG-60 |
| Spraying distance | 20m | 30m | 40m | 60m |
| Engine | electric | electric | electric | electric |
| Electric | 380V/50HZ,3 phase | 380V/50HZ,3 phase | 380V/50HZ,3 phase | 380V/50HZ,3 phase |
| Fan motor | 3kw | 3kw | 4kw | 11kw |
| Steering motor | 2*1.5kw | 2*1.5kw | 2*1.5kw | 2*1.5kw |
| Pump motor | 1.5kw | 1.5kw | 2.5kw | 7.5kw |
| Horizontal angle | 360° | 360° | 360° | 360° |
| Vertical angle | Minus10°-55° | Minus10°-55° | Minus10°-55° | Minus10°-55° |
| The nozzle | 8 | 10 | 16 | 22 |
| Cylinder material | Q235 Carbon steel | Q235 Carbon steel | Q235 Carbon steel | Q235 Carbon steel |
| Bucket | 460L | 480L | 800L | |
| Water consumption | 1000L/h | 1500L/h | 3000L/h | 7500L/h |
| Recycled water pipe | 1400mm | 1400mm | 1400mm | 1400mm |
| The machine size | 1170*940*1700mm | 1170*940*1800mm | 1650*1200*2200mm | 1700*1200*2200mm |
| Weight | 200kg | 250kg | 300kg | 350kg |
Dust Suppression Cannon Performance In Real Working Conditions
A Dust Suppression Cannon needs to match the actual working environment to achieve better dust management results. The equipment performance is affected by several external conditions, including dust concentration, operation area, and weather changes.
Key factors that influence operation include:
Dust source distance
The equipment should be positioned according to where dust is generated. Proper placement helps mist reach the target area more effectively.
Outdoor conditions
Wind direction and speed may affect mist movement. Operators should adjust the spraying angle based on site conditions.
Working schedule
Sites with continuous material handling may require regular operation to maintain dust control.
Area coverage
Large open yards may need equipment with longer spraying distance to cover wider spaces.
Main Components of Fog Cannons
The performance of a Dust Suppression Fog Cannon depends on several important components working together. Each part plays a role in creating stable spraying performance.
Fan system
The fan provides airflow to move mist toward the dust source. Its performance affects spraying range and coverage.
Water pump system
The pump supplies water to the spraying unit and supports continuous operation during dust control tasks.
Nozzle system
Nozzles control the formation of fine water droplets. Proper droplet size helps improve contact with airborne particles.
Adjustment structure
The rotating and angle adjustment system allows operators to change spraying direction according to different site layouts.
Fog Cannon Sprayer Applications For Heavy Industries
A Sprayer Fog Cannon is commonly used in industries where dust is generated from large-scale outdoor activities.
Typical applications include:
- Mining transportation areas: Reduce dust created by vehicle movement and material transfer.
- Aggregate yards: Control particles from stone storage and loading operations.
- Coal storage facilities: Support dust management around open storage areas.
- Port terminals: Reduce dust during bulk material handling.
- Recycling plants: Help manage dust from sorting and processing activities.

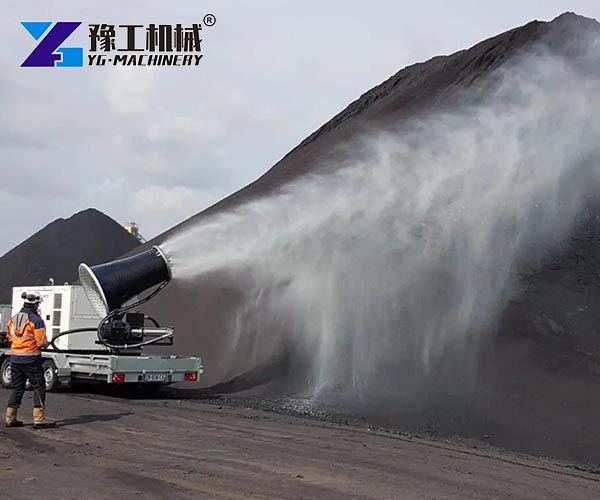

For projects that require equipment movement between multiple locations, a Trailer Fog Cannon provides a flexible option for changing work areas.
Fog Cannon Sprayer Operating Tips
Correct operation can improve dust control performance and reduce unnecessary maintenance.
Recommended practices include:
- Place the equipment close to the main dust source.
- Adjust spraying direction according to wind conditions.
- Check water quality to reduce nozzle blockage.
- Inspect pipes and connections before operation.
- Clean key components after long-term use.
A Sprayer Fog Cannon should be operated according to site conditions to maintain stable performance.
Dust Suppression Fog Cannon Customer Case Study

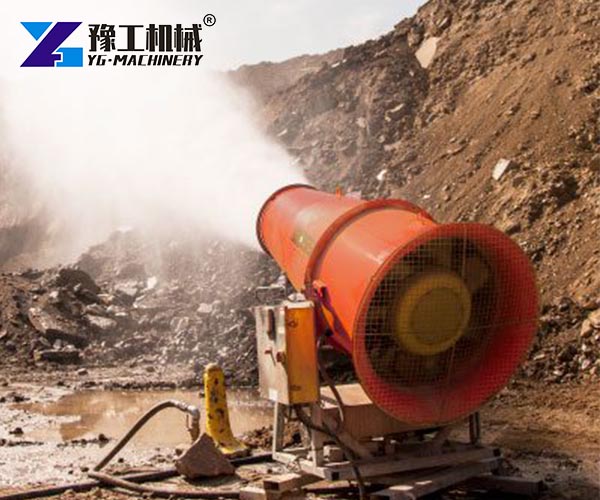

A quarry customer in Saudi Arabia faced a common challenge during daily production. Heavy trucks moved constantly between loading areas, and dry materials created clouds of dust that reduced visibility around the site. The traditional watering method could not cover the whole working area and required frequent manual operation.
After discussing the site conditions, the customer selected a fog cannon machine from YG Machinery. The equipment was installed near the main dust sources and adjusted according to the quarry layout. During operation, the fine mist reached dusty areas and helped control airborne particles during material handling and transportation.
After using the equipment, the customer found that the working environment became cleaner and dust management became easier. This project showed the importance of selecting suitable dust control equipment based on site conditions, dust levels, and operation requirements.
Why Choose YG Machinery For Industrial Equipment
YG Machinery focuses on providing machinery solutions for construction, environmental protection, and industrial applications. With factory manufacturing experience and international supply capability, the company supports customers with equipment selection and project requirements.
Contact YG Machinery to discuss your project needs and find suitable fog cannon machine solutions.【WhatsApp/WeChat/Phone/Skype】+86 13937183602
