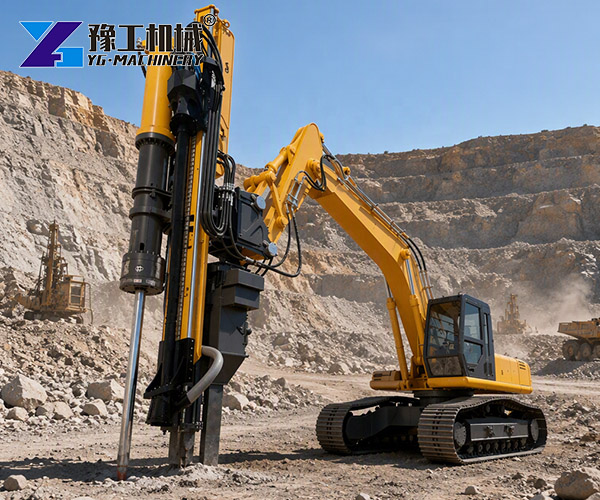

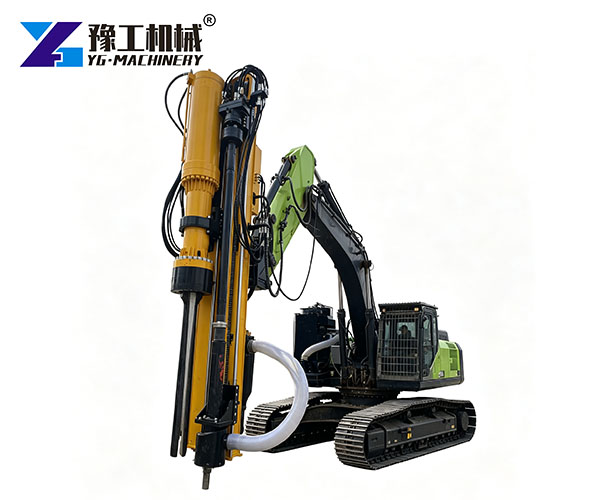

An Integrated Drilling and Splitting Machine is a powerful solution for breaking hard rock in construction, mining, quarrying, and foundation projects. It combines drilling and hydraulic splitting in one machine. This design helps contractors reduce manual work and improve job site efficiency.
Traditional rock breaking often requires separate drilling and splitting equipment. Workers must move between machines, which takes time and increases operating costs. A drilling and rock splitting machine makes the process more direct. It drills holes and applies splitting force through one coordinated unit.
YG Machinery offers the YG-130, YG-152, and YG-210 models for different excavator sizes and working conditions. These machines suit projects that need controlled rock breaking, deep drilling, and flexible operation. They can help contractors handle difficult rock without relying only on traditional impact methods.
Integrated Drilling and Splitting Machine Specifications
Choosing the right model starts with the excavator size, working range, drilling needs, and hydraulic capacity. Compare the specifications below to find a suitable machine for your project.
| Model | YG-130 | YG-152 | YG-210 |
| Suitable Excavator | 20T-36T Excavator | 36T-48T Excavator | 48T-65T Excavator |
| Maximum Horizontal Splitting Height | 9475mm | 9985mm | 10680mm |
| Maximum Vertical Splitting Height | 6715mm | 6905mm | 6770mm |
| Maximum Splitting Depth | 6705mm | 7025mm | 8050mm |
| Maximum Splitting Distance | 10225mm | 10875mm | 11640mm |
| Pilling Beam Length | 3875mm | 4850mm | 5525mm |
| Drilling Advance Stroke | 2000mm | 2600mm | 3500mm |
| Maximum Drilling Thrust Force | 50KN | 50KN | 50KN |
| Maximum Drilling Pull Force | 32KN | 32KN | 32KN |
| Piling Advance Stroke | 1500mm | 1800mm | 2300mm |
| Maximum Piling Thrust Force | 160KN | 160KN | 160KN |
| Maximum Piling Full Force | 100KN | 100KN | 100KN |
| Hydraulic Pressure | Max. 35Mpa | Max. 35Mpa | Max. 35Mpa |
| Hydraulic Flow | Min. 240L/min | Min. 240L/min | Min. 240L/min |
| Weight | 4200kg | 6200kg | 8300kg |
| Dimensions | 4210*1400*1785mm | 5270*1485*1840mm | 5810*1485*1840mm |
| Operation Mode | Remote Control | Remote Control | Remote Control |
Key Benefits of a Drilling and Splitting Machine
A modern Drilling and Splitting Machine offers several advantages for contractors who need reliable rock excavation equipment.
- Two operations in one unit: The machine combines drilling and splitting functions. This reduces the need to move between separate machines and can simplify the work process.
- Controlled rock breaking: Hydraulic splitting applies force inside drilled holes. This method helps operators break rock in a planned direction and can reduce unwanted damage to nearby structures.
- Flexible excavator mounting: Different models match different excavator weight classes. Contractors can select a suitable configuration based on their existing equipment.
- Remote operation: The remote control system allows the operator to control machine movements from a suitable position. This supports more flexible operation when working around uneven rock surfaces.
- Improved work efficiency: A combined system reduces equipment changes between drilling and splitting. Actual productivity depends on rock hardness, hole spacing, site access, and operator skill.
These benefits make the excavator drill and splitting machine a practical choice for projects where controlled rock removal and efficient equipment use are important.

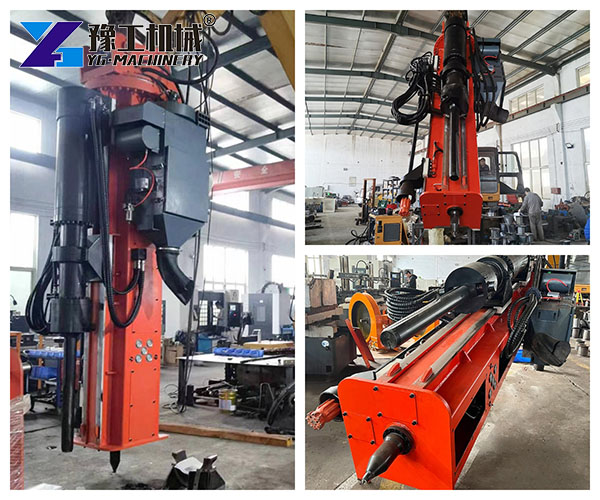

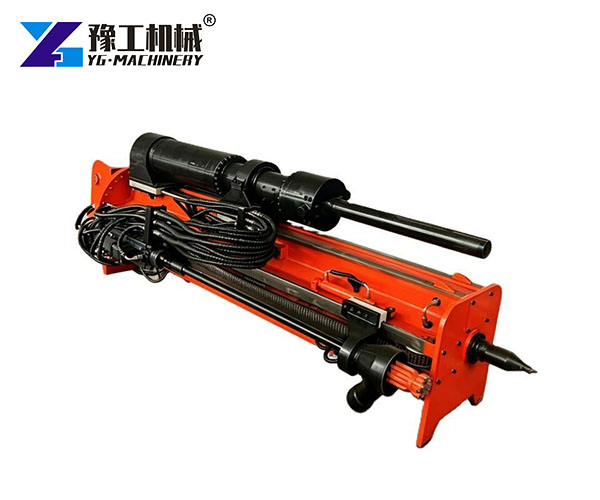

How Does an Integrated Rock Drill and Splitter Work?
An Integrated Rock Drill and Splitter uses a simple working process. It first creates holes in the target rock, then applies hydraulic force to split the material.
The main working steps are as follows:
- Position the machine. Move the excavator to a stable working area and align the attachment with the rock surface.
- Drill the holes. Use the drilling unit to create holes at suitable positions and depths. Hole layout depends on the rock type, required break size, and project plan.
- Prepare the splitting operation. Check the drilled holes and position the splitting unit according to the machine’s operating instructions.
- Apply hydraulic force. The hydraulic system drives the splitting mechanism to create pressure inside the rock. Cracks develop and allow the material to separate.
- Remove the broken rock. Move the separated material away and prepare the next working area.
This process gives operators greater control over rock removal than uncontrolled breaking methods in suitable applications. However, the correct hole layout and operating procedure remain essential for good results.

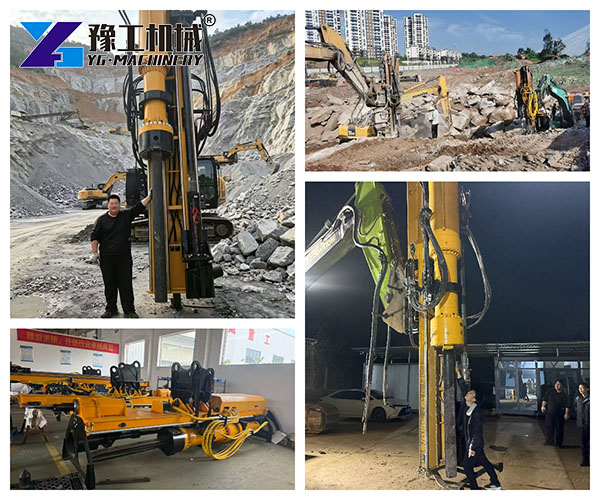

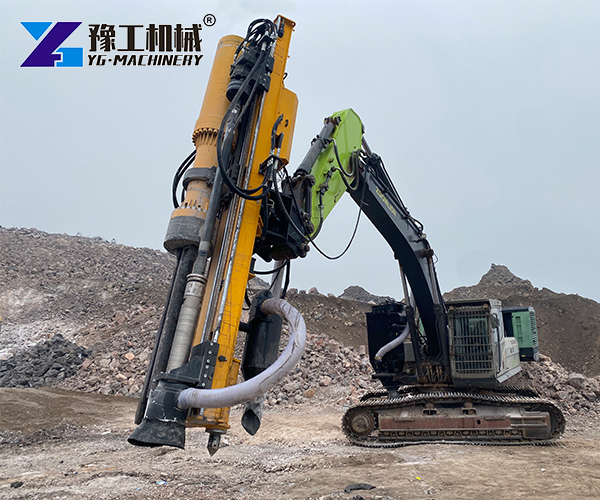

Where Can a Hydraulic Drilling and Splitting Machine Be Used?
A Hydraulic Drilling and Splitting Machine can support a wide range of heavy-duty projects. Its integrated design is useful when hard rock must be removed with control and precision.
Common applications include:
- Quarrying: Breaking large rock masses into manageable sections for further processing.
- Foundation construction: Removing rock during building foundations and other ground preparation work.
- Road construction: Clearing hard rock along road cuts, slopes, and construction routes.
- Mining operations: Supporting selected rock-breaking tasks where the site layout and material conditions suit hydraulic splitting.
- Trenching and utility work: Breaking rock along planned routes for underground pipes, cables, and drainage systems.
- Land development: Preparing rocky ground for construction, excavation, and infrastructure projects.
A hydraulic rock splitter drilling machine can be especially useful where controlled splitting is preferred over heavy impact breaking. Before selecting the equipment, assess the rock structure, available working space, excavator capacity, and project safety requirements.
Frequently Asked Questions
1. What types of rock can this machine split?
It can handle many types of hard rock. Actual results depend on rock hardness, natural cracks, and the drilling method.
2. Can the machine reduce the need for blasting?
Yes. Hydraulic splitting can provide a controlled alternative to blasting in suitable projects, especially where vibration and surrounding structures are concerns.
3. Is the machine suitable for narrow working areas?
It may suit sites with limited space, depending on the excavator size, attachment dimensions, and available working range. Check site conditions before purchase.
4. What affects the machine’s working efficiency?
Rock conditions, hole layout, operator skill, excavator performance, and regular maintenance all affect productivity.
5. What information should I provide when requesting a quotation?
Share your project location, rock type, working conditions, expected workload, and any special equipment requirements. This helps the supplier recommend a suitable solution.
6. Does YG Machinery offer other construction equipment?
Yes. YG Machinery also supplies Fully Hydraulic Core Exploration Rigs, Horizontal Directional Drilling Machines, and Solar Pile Drivers for different construction and drilling applications.
