Global construction and quarry operators carry heavy financial risks when selecting unqualified breaking machinery. Improper rock splitting tools trigger multi-layer losses across every project stage. Blasting bans force costly permit appeals. Vibration-heavy hammers damage adjacent buildings and bring fines. Low-power units drag daily output and miss delivery deadlines. Unmatched spare parts halt work for days while waiting for cross-border shipments. A poorly matched splitter inflates labor, fuel and repair bills month after month. A reliable hydraulic boulder splitter eliminates these cascading financial and schedule risks for all overseas project teams.
Technical Specifications of Hydraulic Boulder Splitter
| Model | YG-250 | YG-350 | YG-450 |
| Wedge Length(mm) | 250mm | 350mm | 450mm |
| Piston Stroke(mm) | 90/220mm | 90/220mm | 90/220mm |
| Drilling Depth(mm) | >500mm | >700mm | >900mm |
| Punching Diameter(mm) | 42mm | 46mm | 46mm |
| Crack Width(mm) | 10-20mm | 10-20mm | 10-20mm |
| Cleavage Time(s) | 10-15/s | 10-15/s | 10-15/s |
| Splitting Force(T) | 500t | 800t | 800t |
| Weight(kg) | 240kg | 250kg | 260kg |

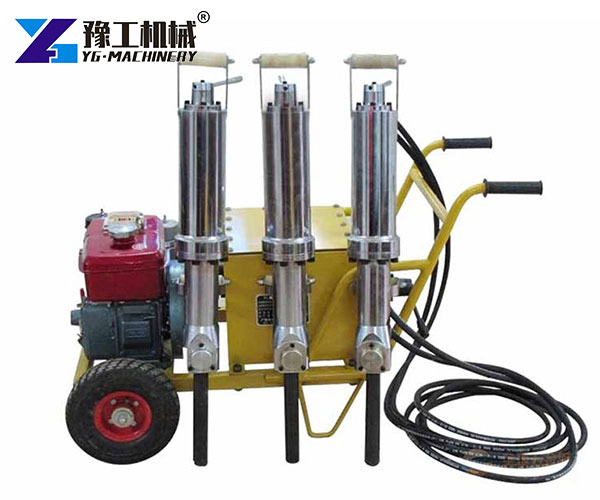

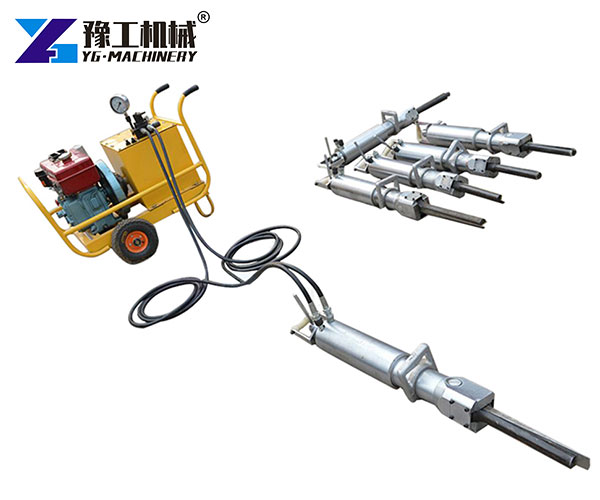

📦 Standard Configuration
- Splitter cylinder
- Hydraulic pump station
- High-pressure hoses
- Quick connectors
How does Hydraulic Splitter for Rock Works
A drilling hole alone cannot break rock efficiently. The quality of splitting depends on how hydraulic pressure is transferred inside the material.
Why It Matters
The hydraulic cylinder pushes the center wedge forward while two side wedges expand outward. Instead of striking the surface repeatedly, pressure develops inside the rock until a natural crack forms.
How to Judge Good Performance
Look for three indicators:
- Stable hydraulic pressure throughout the cycle
- Uniform crack expansion
- Consistent 10–15 second splitting time under normal conditions
Advantages about YG Hydraulic Boulder Splitter
- Forged heat-treated steel wedges resist deformation under 800T peak splitting force
- Single-worker portable splitting gun cuts extra labor staffing for small worksites
- No explosive permit filing fees for urban projects
- Sealed hydraulic circuits reduce on-site oil leakage cleanup work
- Modular assembly cuts container shipping volume for bulk overseas orders
- Multi-gun synchronous operation maximizes site output without adding extra power units
Workflow Improvement
Replacing repeated impact breaking with hydraulic splitting makes the demolition process more predictable.
Traditional Process：
Drilling → Breaking → Rework → Additional Breaking → Material Removal
With YG Splitter
Drilling → Hydraulic Splitting → Material Removal
Result：
- Fewer repeated breaking operations
- More consistent crack direction
- Easier coordination with excavators and crushers
- Reduced interruption to nearby construction activities
External Factors Shaping Overseas Purchase Choices
Import Tariffs
Full CE paperwork supports standard industrial machinery tariff codes in most Western nations.
Ocean Freight Costs
Detachable wedge and power station design lowers cubic shipping space and sea transport charges.
Scheduled Maintenance Cycles
Only wedges and sealing rings require periodic replacement. Major hydraulic assemblies hold multi-year service life.
Customer Case
A quarry company in Kenya required a non-blasting solution to split oversized granite before it entered the crushing plant. After evaluating the customer’s rock conditions, drilling diameter, and production target, YG supplied a YG350 hydraulic boulder splitter with a diesel hydraulic power station. The equipment was manufactured in 20 working days and delivered to the quarry 35 days after shipment.
The YG350 hydraulic boulder splitter processed granite with a 10–15 second splitting cycle, meeting the customer’s daily production schedule throughout the project. The combination of controlled splitting and existing drilling equipment reduced interruptions before the crushing stage and supported continuous quarry operation.
Customer Feedback
“The splitter worked smoothly with our existing drilling equipment and required very little daily maintenance. Rock preparation became more consistent, and the crushing line operated with fewer delays.”
Why Choose YG Machinery
With 20+ years of manufacturing experience, YG Machinery supplies fully tested, CE-certified hydraulic boulder splitter units for global sites.
We offer custom configuration, cross-border shipping, and worldwide after-sales & spare parts support.
Other matching equipment: Drill-split integrated machines, mobile crushing stations
