Dust is a common problem on construction sites, mining areas, demolition projects, and material yards. It can spread through the air during loading, crushing, moving, or dry weather. A Fog Cannon Machine uses water mist to reduce airborne dust near the working area. Compared with simple water spraying, it can direct mist toward the dust source and cover a wider working zone. This makes it a practical option for outdoor dust control projects.
Water Mist Cannon Parameters
| Model | YG-20 | YG-30 | YG-40 | YG-60 |
| Spraying distance | 20m | 30m | 40m | 60m |
| Engine | electric | electric | electric | electric |
| Electric | 380V/50HZ,3 phase | 380V/50HZ,3 phase | 380V/50HZ,3 phase | 380V/50HZ,3 phase |
| Fan motor | 3kw | 3kw | 4kw | 11kw |
| Steering motor | 2*1.5kw | 2*1.5kw | 2*1.5kw | 2*1.5kw |
| Pump motor | 1.5kw | 1.5kw | 2.5kw | 7.5kw |
| Horizontal angle | 360° | 360° | 360° | 360° |
| Vertical angle | Minus10°-55° | Minus10°-55° | Minus10°-55° | Minus10°-55° |
| The nozzle | 8 | 10 | 16 | 22 |
| Cylinder material | Q235 Carbon steel | Q235 Carbon steel | Q235 Carbon steel | Q235 Carbon steel |
| Bucket | 460L | 480L | 800L | |
| Water consumption | 1000L/h | 1500L/h | 3000L/h | 7500L/h |
| Recycled water pipe | 1400mm | 1400mm | 1400mm | 1400mm |
| The machine size | 1170*940*1700mm | 1170*940*1800mm | 1650*1200*2200mm | 1700*1200*2200mm |
| Weight | 200kg | 250kg | 300kg | 350kg |
Fog Cannon Machine Working Principle
The working process is simple. Water passes through the spray system and is released as fine droplets. A fan then pushes the mist toward the target area.
The process includes three steps:
- Water supply.Water enters the pump and moves through the spray system.
- Mist formation.The nozzles turn the water into fine droplets.
- Dust reduction.The droplets contact airborne dust and help bring dust particles down.
This method allows a fog cannon sprayer to focus on the main dust source. It can reduce the need for manual water spraying with hoses and is suitable for regular outdoor dust control.
Fog Cannon Machine For Different Sites

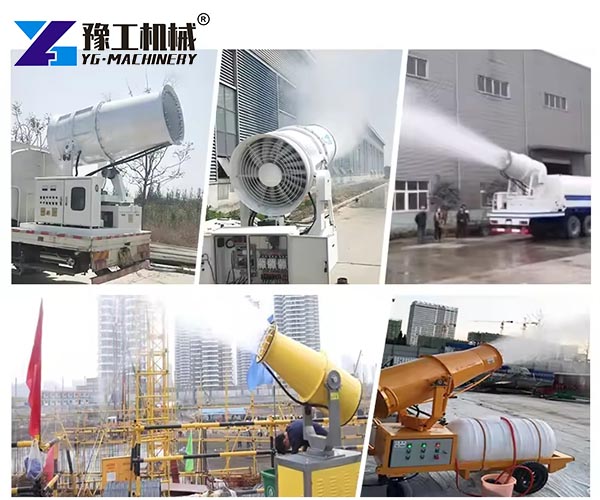

A dust control fog cannon can be used in many places where airborne dust is produced. Common applications include:
- Construction and earthwork sites
- Mining and quarry areas
- Demolition projects
- Aggregate and material yards
- Coal storage areas
- Waste handling sites
- Outdoor industrial areas

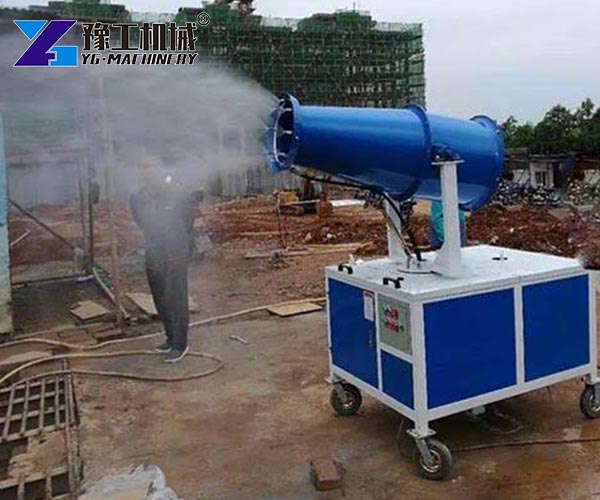

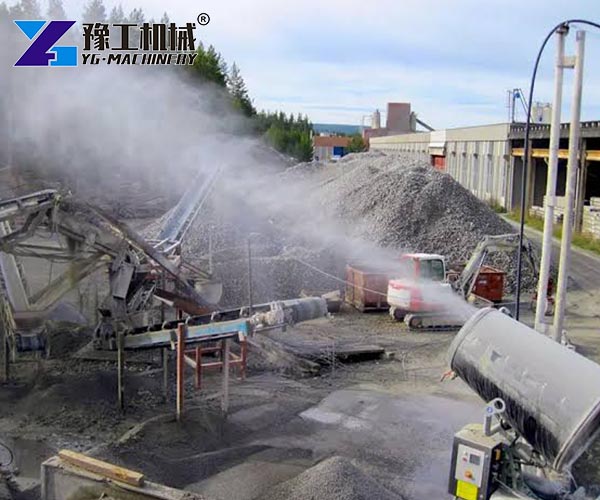

On construction sites, it can be used near material piles, truck routes, and earthwork areas. In mining and quarry operations, it can support dust control around loading, crushing, and material transfer points.
An industrial fog cannon is also suitable for open industrial areas where dust is created during material handling. The actual setup should depend on the dust source, site layout, wind direction, and working process.
Dust Control Fog Cannon Selection
Choosing the right equipment starts with the project conditions. A larger machine is not always necessary.
Consider these points before ordering:
- Dust source.Know where most of the dust is produced. This helps determine the best operating position.
- Working area.Check the size and layout of the site. A small working zone may have different needs from a large open yard.
- Power supply.Confirm the available electrical supply before purchase.
- Water source.Make sure the project can provide enough water for normal operation.
- Site environment.Wind, buildings, vehicles, and worker locations may affect mist movement.
For a fixed dust source, a dust suppression cannon can be placed near the working area. For larger or more complex projects, equipment selection should be based on the full site conditions.
Maintenance Tips of Dust Suppression Fog Cannon
Regular maintenance helps keep the equipment ready for daily work. The routine is simple and can be included in normal site checks.
- Clean the spray system: Check the nozzles and water lines regularly to reduce the risk of blockage.
- Check the pump: Make sure the pump works normally and that there is no unusual water leakage.
- Inspect the fan: Keep the fan area clean and check for loose parts before operation.
- Check electrical connections: Inspect cables and connections before starting the machine.
- Keep the machine clean: Remove dust and dirt from the main parts after use, especially when working in dry or dusty areas.
A simple maintenance routine can help reduce unexpected downtime and keep the water mist cannon ready for repeated use.
Fog Cannon Machine For Project Support
Dust control is often only one part of site cleaning and environmental management. Some projects may also need road cleaning or additional water spraying equipment.
YG Machinery also supplies Compact Street Sweeper and Water Cannon Dust Suppression for related applications. These products can be selected according to the working environment and project needs.
YG Machinery has more than 20 years of machinery manufacturing experience and serves customers in overseas markets. We provide equipment selection, customized configurations, international delivery, and technical support.
Send us your project details, including the dust source, working area, power supply, and water conditions. Our sales engineers can recommend a suitable dust suppression fog cannon and provide a quotation for your project.【WhatsApp/WeChat/Phone/Skype】+86 13937183602
