Before applying a new coating or repairing a hard surface, proper surface preparation is often needed. Dirt, old coatings, rust, and weak surface layers can affect the final result. Manual cleaning may also take a lot of time on large working areas. A Floor Shot Blasting Machine offers a mechanical way to prepare the surface by using steel shot to remove unwanted layers and create a suitable surface for the next step.
For concrete floors, steel plates, and other suitable hard surfaces, the machine can support cleaning and surface preparation work. The Floor Shot Blaster is available in different working widths, making it easier to match the equipment to different project sizes and site conditions. YG Machinery provides several configurations for contractors and equipment buyers.
Floor Shot Blasting Machine Parameters
| Model | YG-270(Single) | YG550/600(Double) | YG-850(Double) | |
| Shot Blasting Wheel Diameter | 200mm | |||
| Working width | 270 mm | 550/600 mm | 800 mm | |
| Walking speed | 0.5~20 m/min | 0.5~33 m/min | ||
| Concrete surface cleaning efficiency | ≥180 m2/h | ≥400 m2/h | ≥600 m2/h | |
| Steel plate surface cleaning efficiency | 15-25 m2/h | 75-100 m2/h | 100-160 m2/h | |
| Dust connection pipe diameter | 120 mm | 150 mm | ||
| Suggest the diameter of steel balls | 1.2-1.5 mm | 1.5-1.8 mm | ||
| Steel pill consumption | 10 g/m2 | |||
| Supporting dust collector | Seven-core automatic backflush vacuum cleaner | Eight-core automatic backflush vacuum cleaner | ||
| Shot wheel motor | Power consumption | 11 kW | 11*2 kW | 15*2 kW |
| Input Current | ≤ 15 A | ≤ 22*2 A | ≤ 28*2 A | |
| Walking motor | Power consumption | 0.5 kW | 1.5 kW | |
| Input Current | 1 A | 3 A | ||
| Size (mm) | 1000*300*1100 | 1950*720/775*1400 | 1950*1020*1550 | |
| Weight | 150 kg | 570 kg | 700kg | |
| Power connection requirements | 400V, 50Hz, 100A, CEE socket | |||
Advantages of Concrete Shot Blasting Machine
A Cement Floor Shot Blasting Machine offers a practical way to prepare hard surfaces for repair, coating, and maintenance work. Compared with manual cleaning, it can cover larger areas with a more consistent treatment result.
Key advantages include:
- Effective surface cleaning: Steel shot can remove loose material, old coatings, rust, dirt, and other surface contaminants.
- Even surface preparation: The blasting process helps create a more uniform surface for the next construction step.
- Wide application: The machine can be used for suitable concrete floors, cement floors, and steel surfaces.
- Lower manual workload: Mechanical blasting reduces the amount of manual scraping and cleaning required.
- Dust collection: The connected dust collection system helps control dust during operation.
- Easy project matching: Different working widths allow you to select equipment based on the size and conditions of the work area.
Applications of Road Shot Blasting Machine
A Road Shot Blasting Machine can be used for more than ordinary road maintenance. It is also suitable for many hard surface preparation tasks where mechanical cleaning is required.
Typical applications include:
Concrete floors: Used in workshops, warehouses, parking areas, factories, and other facilities where the surface needs cleaning or preparation.

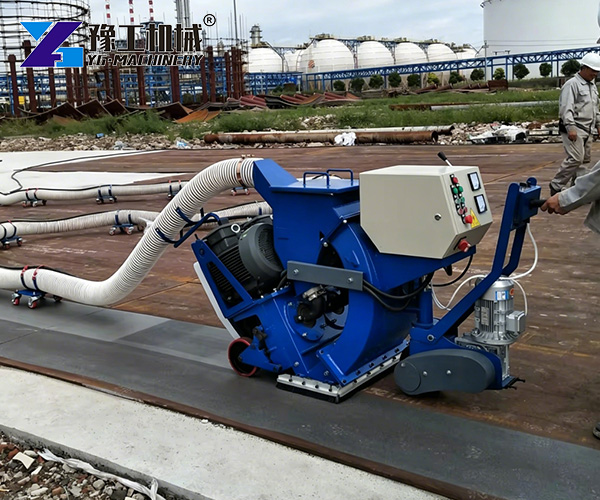

Steel surfaces: The machine can clean suitable steel plates and help remove rust, old coatings, and surface contamination before further treatment.
Road and bridge surfaces: It can support maintenance work where existing surface layers must be treated before repair or coating.
Industrial areas: Hard surfaces with dirt, paint, or weak material can be prepared for the next construction process.
Floor Shot Blasting Machine Working Principle
The working process is straightforward. Steel shot is fed into the blasting system and accelerated by the blast wheel. It then hits the working surface at high speed. The impact removes unwanted material and creates a clean, prepared surface.
At the same time, the recovery system separates dust and collects reusable shot. This helps reduce loose material around the work area.
The operator should keep the machine moving at a steady speed. Overlapping passes can also help achieve a more even result, especially when a large area requires consistent treatment.
Concrete Shot Blasting Machine Selection Tips
Choosing the right shot blasting machine for concrete floor depends on the actual project. A larger machine is not always necessary. The main point is to match the equipment to the work area and surface condition.
Consider these factors:
Surface type: Check whether the job involves concrete, cement-based flooring, steel plates, or another suitable hard surface.
Working area: A wider working path can be useful for large open spaces, while a narrower machine may be easier to use in restricted areas.
Surface condition: Old coatings, rust, dirt, and weak surface layers may require different treatment methods.
Dust control: For indoor projects, dust collection is an important part of the working system.
Future use: Contractors who handle different projects may prefer a machine that can support more than one type of surface preparation work.
A suitable Floor Shot Blasting Equipment setup can make daily operation easier and reduce unnecessary manual cleaning.
Floor Shot Blasting Machine Care
Good maintenance helps keep the machine in stable working condition and reduces unexpected downtime.
Before operation, inspect the blast wheel, shot feed system, dust collection system, electrical connections, and other visible parts. Make sure the working system is clean and ready.
During use, pay attention to unusual noise, vibration, blocked dust pipes, or uneven blasting. Stop the machine when a problem is found instead of continuing to operate it.
After each job, clean the machine and remove remaining dust and steel shot. Check wearing parts regularly and replace damaged components when needed.
YG Machinery for Road Surface Work
YG Machinery supplies construction and industrial equipment to overseas markets. Our product range covers equipment for concrete, road construction, material handling, drilling, and other applications.
For related road projects, you can also consider a Mini Road Roller, Pavement Crack Repair Machine, and Road Line Marking Machine,etc. These machines can be used for different stages of road construction and maintenance.
Contact YG Machinery with your surface type, working area, and project requirements. Our sales team can help you select a suitable model and provide a factory quote.【WhatsApp/WeChat/Phone/Skype】+86 13937183602
