Selecting a cutting system becomes difficult when projects involve thick reinforced concrete, bridge beams, large foundations, or confined construction sites. Contractors often face problems such as excessive vibration, structural damage, noisy demolition, and slow cutting progress. A hydraulic wire saw solves these issues by delivering continuous diamond wire cutting with stable hydraulic power. It handles large concrete structures while reducing vibration and improving cutting accuracy. This makes it suitable for bridge renovation, tunnel construction, industrial demolition, and stone processing projects where conventional cutting equipment cannot operate efficiently.

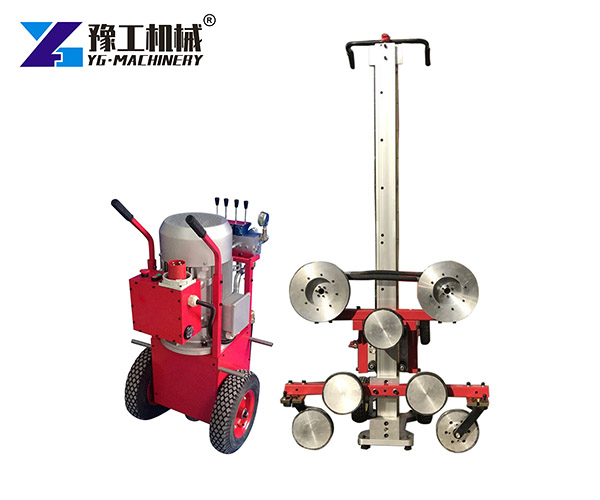

What Is a Hydraulic Wire Saw

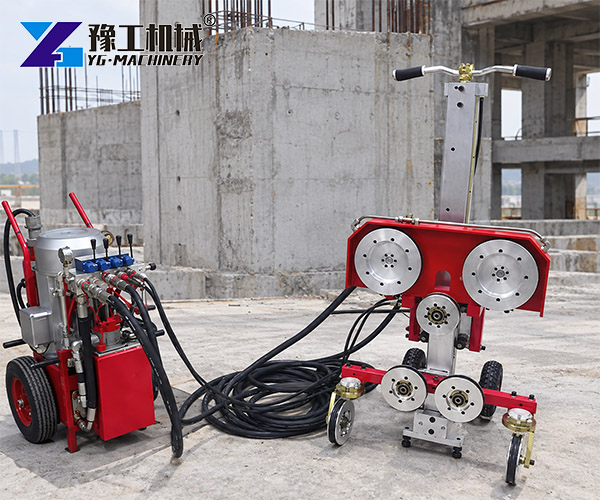

A hydraulic wire saw is a professional cutting machine that uses hydraulic power to drive a diamond wire around reinforced concrete or stone materials. The system separates structures through continuous cutting instead of impact force.
This working method reduces vibration during operation and helps protect surrounding structures. Contractors can use the equipment for bridge beams, concrete walls, foundations, tunnels, and other large components.
Main application areas include:
- Bridge renovation projects
- Reinforced concrete demolition
- Industrial structure modification
- Tunnel construction
- Stone cutting operations
Configuration and Working Conditions
| Wire Saw Wheel Parameters | Hydraulic Pump Station Parameters | ||
| Wire Drive Mode | hydraulic | Rated Output Power | 22/25KW |
| Model Type | HM-40/80 | Working Voltage | 380v 50Hz |
| Minimum Input Power | 25HP/33HP | Hydraulic Pump Station | Gear pump |
| Output Shaft Speed | 350/940/1300r/min | Motor Working Floe | 40-100L/min |
| Maximum Wire Length | 18m | Working Pressure | 15-20Mpa |
| Feeding Method | Fully hydraulic | Oil Tank Volume | 16L |
| Wire Saw Wheel | 64kg | Weight | 98kg |
| Motor Weight | 13kg | Dimension(mm) | 650*550*1150 |
| Cutting Type | Transverse and longitudinal cutting | ||

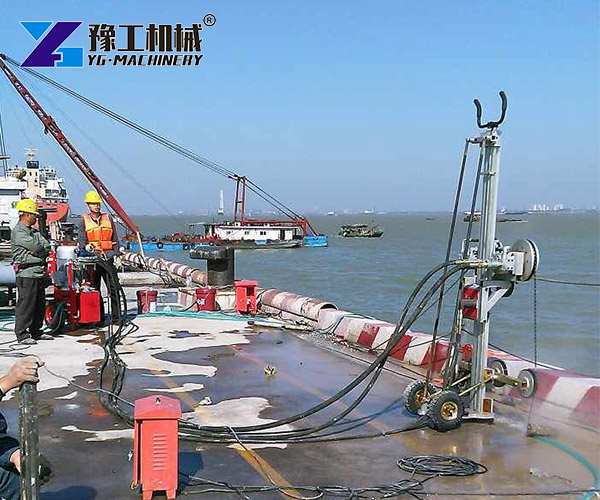

🔧 How Concrete Rope Saw Technology Works
A concrete rope saw uses a continuous diamond wire loop to remove material through controlled grinding and cutting. The hydraulic motor transfers power to the wire system and maintains stable movement during operation.
The automatic hydraulic feeding system adjusts the cutting pressure according to working conditions. This reduces frequent manual adjustment and helps maintain consistent cutting performance during long operations.
The working process usually includes:
- Installing guide wheels around the cutting area
- Connecting the diamond wire through the structure
- Adjusting hydraulic pressure and feeding speed
- Starting continuous cutting operation
This design allows operators to complete horizontal, vertical, and inclined cutting tasks. For diamond wire saw cutting concrete, the system provides flexibility when working on oversized structures that cannot be easily processed with standard blade equipment.
Hydraulic Wire Saw Compared with Traditional Cutting Equipment
Different cutting methods create different results during concrete demolition projects. Breaker hammers remove material quickly but generate stronger impact and vibration, which may affect nearby structures.
A hydraulic wire saw focuses on controlled separation. The diamond wire follows the planned cutting path and creates cleaner edges, reducing additional trimming work after removal.
Key differences include:
| Equipment Type | Working Method | Suitable Applications |
|---|---|---|
| Hydraulic breaker | Impact crushing | General concrete breaking |
| Blade saw | Circular blade cutting | Standard concrete sections |
| Hydraulic wire saw | Continuous wire cutting | Large structures and restricted areas |
Applications Across Different Industries
The application range of a hydraulic wire saw extends beyond standard demolition work. Different industries select this equipment because it can handle large structures with controlled cutting results.
🌉 Bridge and Infrastructure Projects
Bridge renovation requires precise removal of beams, piers, and concrete sections. The wire cutting method helps contractors separate structures while reducing vibration impact on remaining components.
🏢 Building Renovation
Commercial buildings and industrial facilities often need partial demolition instead of complete removal. The equipment supports wall, slab, and foundation cutting during reconstruction projects.
🚇 Tunnel and Underground Construction
Underground projects usually have limited working space. Flexible wire installation allows operators to complete cutting tasks in areas where large equipment cannot easily operate.
⛏️ Mining and Stone Processing
Stone industries use diamond wire technology for cutting natural materials. The system helps improve cutting control when processing granite, marble, and other stone blocks.
Workflow Optimization and Labor Management
1. Preparation
Workers inspect the cutting area and install guide components according to the required cutting direction.
2. Wire Installation
The team places the diamond wire around the structure and connects the cutting system.
3. Cutting Operation
The hydraulic system drives the wire while automatic feeding maintains stable cutting pressure.
4. Material Removal
After cutting, workers can remove the separated concrete sections with lifting equipment.
Factors Affecting Procurement Cost
International buyers evaluate more than the machine price when selecting concrete cutting equipment. Several external factors influence the final procurement budget.
Important factors include:
- Shipping distance and transportation method
- Local import duties and customs requirements
- Spare parts preparation
- Power supply compatibility
- Long-term maintenance planning
For overseas projects, shipping arrangements can affect delivery costs. Buyers should confirm destination regulations and required documents before placing orders.
Overseas Customer Case
A European construction contractor contacted YG for a solution to cut reinforced concrete structures during a renovation project. The customer needed equipment that could complete precise cutting work while reducing vibration impact on the existing structure.
The project process followed a clear timeline:
📩 Project Inquiry
The customer shared the application requirements, including concrete structure information and jobsite conditions. YG engineers reviewed the cutting requirements and recommended a suitable hydraulic wire saw configuration.
⚙️ Technical Confirmation
The engineering team confirmed the equipment specifications, power requirements, and operating conditions. The customer selected the hydraulic system with automatic feeding based on the project requirements.
📦 Production and Delivery
YG completed equipment preparation according to the confirmed configuration. The machine was packed and shipped with operation instructions and necessary technical documents.
🏗️ On-Site Application
After installation, the equipment performed reinforced concrete cutting tasks on the project site. The hydraulic system maintained stable wire movement during operation, helping workers complete cutting sections with controlled results.
Frequently Asked Questions
Q: What materials can a hydraulic wire saw cut?
A: It cuts reinforced concrete, stone, walls, beams, foundations, and other hard materials.
Q: How do I choose the right model?
A: Select the model based on cutting requirements, material conditions, power supply, and jobsite environment.
Q: Can it work in narrow areas?
A: Yes. The flexible wire system supports cutting in restricted spaces and complex structures.
Q: What power supply does the machine need?
A: The standard configuration uses a 380V 50Hz power supply.
Q: How do I maintain the equipment?
A: Check hydraulic oil, wire components, and guide wheels regularly to maintain stable operation.
🌍 About YG Machinery
YG Machinery has more than 20 years of experience in industrial equipment manufacturing. The company supplies machinery for global markets and follows strict quality control standards with CE certification for international projects.
YG provides:
- ✔️ Customized equipment solutions
- ✔️ Machine configuration support
- ✔️ Installation guidance
- ✔️ After-sales technical service
The engineering team helps customers select suitable equipment based on project requirements, operating conditions, and local standards.
Besides hydraulic wire saw, YG also supplies related construction equipment:
- ✔️ Wall saw machines
- ✔️ Mobile crushing stations
These solutions support contractors in concrete cutting, demolition, and material processing projects with suitable equipment selection.
