A concrete rope saw uses a diamond wire system to separate reinforced concrete and stone materials. It helps contractors complete cutting work in areas where traditional equipment may create excessive vibration or limited access.
Overseas construction teams usually consider several factors before purchasing:
- Cutting depth and material type
- Jobsite space and installation conditions
- Power supply and maintenance requirements
YG designs diamond wire cutting equipment for infrastructure projects, structural modification, and industrial applications. The system supports controlled cutting operations while adapting to different project environments.
Product Specifications
| Type | YG-11G | YG-15G | YG-18.5G | YG-22G | YG-30G | YG-45G | YG-55G | YG-75G |
| Driving Motor Power (kw) | 11 | 15 | 18.5 | 22 | 30 | 45 | 55 | 75 |
| Flywheel’s Diameter(mm) | 550 | 550 | 650 | 650 | 800 | 800 | 800 | 1000 |
| Linear Wire Speed(m/s) | 0-40 | 0-40 | 0-40 | 0-40 | 0-40 | 0-40 | 0-40 | 0-40 |
| TowaYGe length of wire (m) | 10-20 | 10-30 | 10-35 | 10-40 | 20-50 | 20-100 | 20-120 | 20-150 |
| Feeding Power (kw) | 0.75 | 0.75 | 0.75 | 0.75 | 0.75 | 0.75 | 1.5 | 1.5 |
| Sideways range (manual)(mm) | 200 | 200 | 450 | 450 | 450 | 650 | ||
| Rotation Angle (Degree celsius) | 360 | 360 | 360 | 360 | 360 | 360 | 360 | 360 |
| Machine Travelling speed (m/h) | 0-30 | 0-30 | 0-30 | 0-30 | 0-32 | 0-32 | 0-32 | 0-32 |
| Length of Rail | 2m*3 | 2m*3 | 2m*3 | 2m*3 | 2m*3 | 2m*3 | 2m*3 | 2m*3 |
| Power (AC V/Hz) | 380/50 | 380/50 | 380/50 | 380/50 | 380/50 | 380/50 | 380/50 | 380/50 |
| Working Temperature Range | -15~40 | -15~40 | -15~40 | -15~40 | -15~40 | -15~40 | -15~40 | -15~40 |
| Weight (Tons) | 0.35 | 0.37 | 0.6 | 0.7 | 2.1 | 2.6 | 2.9 | 3.1 |

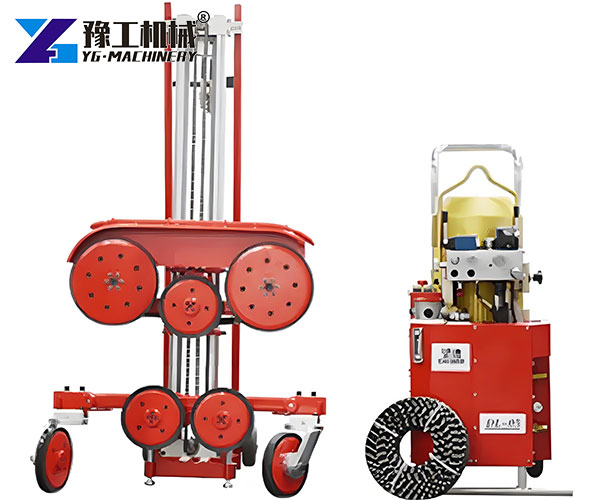

Hydraulic Wire Saw Working Principle for Concrete Cutting
A hydraulic wire saw uses hydraulic power to drive a continuous diamond wire around the cutting surface. The diamond segments on the wire gradually remove material while maintaining a controlled cutting path.
The system works through several main steps:
- Install guide wheels around the cutting area
- Connect the diamond wire through the structure
- Adjust cutting tension and movement speed
- Start continuous cutting operation
Machine Structure and Design Details
YG focuses on practical construction requirements when designing diamond wire cutting equipment. The machine structure supports transportation, installation, and repeated operation on different job sites.
Key Design Features
- Hydraulic drive structure for continuous operation
- Diamond wire cutting system for concrete separation
- Adjustable installation layout for different structures
- Components designed for regular maintenance access
The hydraulic system allows operators to control cutting conditions according to material thickness and project requirements.
For overseas users, equipment design also needs to consider transportation distance, climate conditions, and maintenance availability. Proper inspection of hydraulic components and cutting parts helps maintain stable operation during long-term use.
Applications by Engineering Type and Working Environment
🌉 Bridge and Infrastructure Projects
Bridge renovation often requires removing concrete sections without affecting nearby structures. The diamond wire system allows workers to cut beams, piers, and bridge components with controlled cutting lines.
🏢 Building Renovation
Commercial and industrial buildings may require partial demolition during upgrades. The equipment supports cutting walls, floors, and foundations while keeping surrounding areas stable.
🚇 Tunnel and Underground Construction
Limited space creates challenges for underground projects. The flexible wire installation method allows operators to perform cutting tasks in areas with restricted access.
🏭 Industrial Facilities
Factories and power facilities often need structural modification without stopping all operations. Controlled cutting helps teams remove selected concrete sections during maintenance work.
⛏️ Stone Processing
Stone applications require accurate cutting paths and stable operation. The diamond wire system can process granite, marble, and other hard materials according to project needs.
💰 Operating Cost Factors for Overseas Buyers
Purchasing a cutting machine involves more than the initial equipment price. International buyers usually evaluate transportation, consumable parts, maintenance requirements, and local operating conditions.
Main cost factors include:
- Diamond wire consumption
- Hydraulic system maintenance
- Spare parts preparation
- Shipping and import costs
- Local power compatibility
The diamond wire represents one of the main operating consumables. Its service life depends on material hardness, cutting conditions, and operator experience.
📈 Long-term Project Value and Workflow Improvement
A concrete rope saw can change the working process of large concrete removal projects. Traditional demolition methods often require additional surface repair after breaking, while wire cutting creates cleaner separation lines.
In practical construction situations, the equipment helps teams improve several workflow steps:
- Reduce repeated concrete breaking work
- Simplify lifting preparation after cutting
- Improve coordination between cutting and removal teams
- Reduce unnecessary damage to surrounding structures
📌 Selection Suggestions Before Purchase
Choosing suitable equipment depends on three main factors: project requirements, working environment, and cutting volume.
1. Cutting Requirements
Confirm the material type, structure thickness, cutting direction, and required accuracy. Reinforced concrete and stone projects may require different operating approaches.
2. Jobsite Conditions
Check available space, power supply, transportation access, and installation conditions. Narrow areas may require more flexible wire arrangement.
3. Project Scale
Large infrastructure projects usually require continuous operation capability. Smaller renovation projects may focus more on transportation convenience and maintenance planning.
📦 Overseas Customer Case
An Australian construction contractor contacted YG for a concrete cutting solution during a structural renovation project. The customer needed equipment for reinforced concrete cutting in a restricted working area and required stable operation for continuous construction tasks.
📩 Inquiry Stage
The customer provided project information, including concrete structure requirements, working environment, and expected cutting tasks. YG engineers reviewed the application details and suggested a suitable diamond wire cutting solution.
⚙️ Technical Confirmation
The team confirmed the machine configuration, power requirements, and operation conditions before placing the order. The customer checked the equipment details, maintenance requirements, and shipping documents.
📦 Order and Delivery
After order confirmation, YG arranged production and prepared the equipment for international shipment. The machine was delivered with operation information and technical support documents for overseas installation.
🏗️ On-site Operation
- Cutting thickness: Up to 450 mm concrete sections
- Daily operation: Around 6–8 working hours
- Operator requirement: 2 workers for cutting operation
- Wire replacement: Adjusted according to concrete hardness and cutting conditions
💬 Customer Feedback
The contractor reported that the machine matched the project requirements and helped the team organize cutting and removal procedures more efficiently. The customer continued communication with YG for operation guidance and future project support.
Frequently Asked Questions
Q: What materials can a concrete rope saw cut?
A: It cuts reinforced concrete, stone, bridge structures, and large concrete components.
Q: When should I choose a hydraulic wire saw?
A: It suits projects that need controlled cutting, low vibration, and flexible operation areas.
Q: Can the machine work in limited spaces?
A: Yes. The diamond wire system supports cutting in complex structures and restricted areas.
Q: What information should I provide before purchasing?
A: Provide material type, cutting size, jobsite conditions, and power requirements.
About YG Machinery
YG Machinery has more than 20 years of experience in industrial equipment manufacturing. The company supplies machinery for global markets and follows strict quality control standards with CE certification for international projects.
YG provides customized equipment solutions based on different application requirements, including machine configuration, operating conditions, and local standards. The engineering team supports customers from product selection to installation guidance and after-sales service.
Besides concrete rope saw, YG also supplies related construction equipment, including wall saw machines, mobile crushing stations, and splitting machines. These solutions support contractors in concrete cutting, demolition, and material processing projects with suitable equipment selection.
