In this case, YG Machinery supplied a PV Pile Driver to a Saudi contractor for a 5MW desert solar project. The pile foundation work had to finish in six weeks. Site temperatures passed 45°C. The ground was loose, fine sand. The client needed a machine that could keep driving piles, not a machine with the highest peak speed.
Recommended configuration: Crawler photovoltaic pile driver
| Crawler photovoltaic pile driver | |||
| Overall dimensions | 4700*2200*2800mm | Hydraulic hammer flow | 50-110L/min |
| Track shoe width | 400mm | Impact frequency | 350-800BMP |
| motor | 4108 | Hydraulic system pressure | 25mpa |
| Generator power | 88kw Motor | Strong wind for heat dissipation | yes |
| Drilling depth | 0-6m | oil pump | 40/40/32 |
| Drilling diameter | 80-600mm | Driving speed | 3km/h |
Project Background: A 5MW PV Pile Driver Task With No Slack
The client was a local Saudi solar installer. It had five years of experience in commercial and industrial rooftop projects. This 5MW ground-mounted plant was its largest desert job to date. The full pile foundation package was locked into a six-week window. Any delay in piling would push back racking and module installation. The client could not accept a“wait for cooler hours”plan. The machine had to work through the daytime heat and move between pile points without getting stuck.
Why This Saudi Client Chose a Crawler Solar Pile Driver
The client had previous desert experience. On an earlier project, overheating and stuck equipment cost several days of work. So the selection logic was simple. The client did not shop for a solar pile driver by top speed alone. It compared machines by continuous working time. YG reviewed soil samples and the six-week schedule. The recommendation was a crawler photovoltaic pile driver with heat and sand provisions built in. The goal was not a higher peak number. The goal was fewer stops.

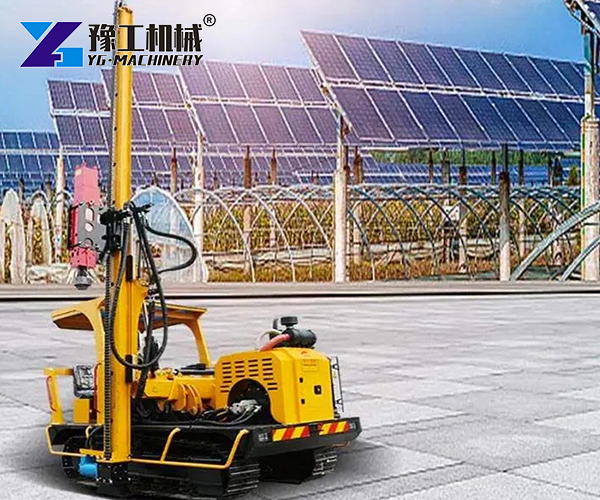

Heat and Sand: Two Design Choices on the Crawler Solar Pile Driver
Two features directly matched this site. First, the machine uses a strong wind heat dissipation system. The target is eight hours of continuous pile driving without hydraulic oil temperature triggering a shutdown. At 45°C ambient heat, that matters. A single overheating stop can break the pile cycle and idle the crew.
Second, the machine runs on 400mm track shoes. The wider track shoes spread ground pressure over a larger area. On loose fine sand, the machine can move from pile to pile without sinking. That keeps the pile driving rhythm intact. These are not general desert claims. They are the two site problems this client faced every day.
Delivery and Training: Two Operators, One Day
The machine arrived on site with two experienced heavy-equipment operators assigned to it. YG provided remote operation training. The target was one working day to learn the control logic. No resident engineer was required. The machine entered full output within 24 hours of arrival. That speed mattered because the six-week clock had already started.
Results: The Solar Pile Driver for Sale That Finished Early
The project record is direct. Zero overheating shutdowns. Zero sand stuck events. The pile driving machine stayed on schedule through the full campaign. The client completed all pile foundations before the original six-week deadline. Module installation started earlier than planned. For this contractor, the value was not a single fast pile. The value was a stable daily output that protected the overall commissioning date.
Client Feedback: What This PV Pile Driver Case Proved

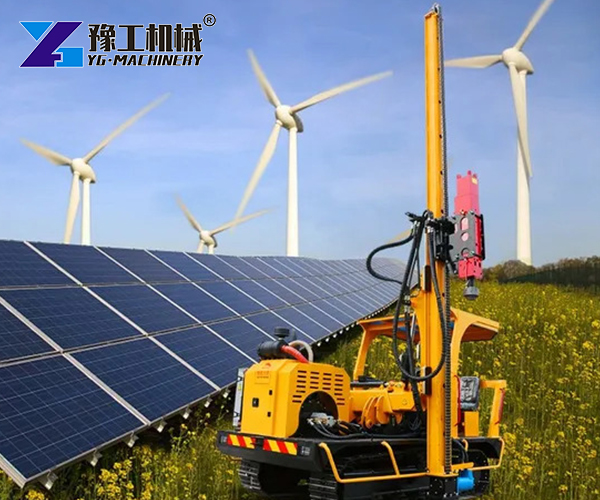

The client’s project lead gave a clear comparison. On an earlier desert job, overheating and stuck equipment had cost several days. On this job, the machine stayed reliable when site temperatures peaked at 47°C. Early completion allowed the module crew to start sooner and protected the grid connection timeline. The client described it as a heavy-duty solar foundation pile driver that simply kept working.
If you are planning a desert solar project and need the same continuous availability, contact YG Machinery. Tell us your pile depth, diameter, and schedule. We will recommend the right PV pile driver and send a quote.【WhatsApp/WeChat/Phone/Skype】+86 13937183602
