A Polyurea Coating Machine is designed to spray protective coatings onto different surfaces. It is used in construction, industrial maintenance, waterproofing, and infrastructure projects. The right equipment supports even coating application and consistent material delivery. YG Machinery offers different machine configurations for various job requirements, allowing you to compare technical specifications before making a purchase.
Specifications of Polyurea Coating Machine
| Model | YG-H-T50 | YG-H5600T | YG-H-T40 | YG-H5600 | YG-Q30 | YG-IIIH |
| Power Supply | 380V/50Hz | 380V/50Hz | 380V/50Hz | 380V/50Hz | 380V/220V | 380V/220V |
| Heating Power | 25 kW | 25 kW | 22 kW | 22 kW | 15 kW | 9.5 kW |
| Total Power | 29 kW | 29 kW | 26 kW | 26 kW | 15.5 kW | 9.5 kW |
| Drive Type | Hydraulic | Hydraulic | Hydraulic | Hydraulic | Pneumatic | Pneumatic |
| Material Output | 2–8 kg/min | 2–8 kg/min | 2–12 kg/min | 2–12 kg/min | 2–10 kg/min | 2–10 kg/min |
| Air Supply | ≥0.6 m³/min | ≥0.6 m³/min | ≥0.6 m³/min | ≥0.6 m³/min | 0.5–1 MPa ≥1 m³/min | 0.5–0.8 MPa ≥0.9 m³/min |
| Max Output Pressure | 36 MPa | 36 MPa | 36 MPa | 36 MPa | 28 MPa | 25 MPa |
| A/B Ratio | 1:01 | 1:01 | 1:01 | 1:01 | 1:01 | 1:01 |
| Heating Temperature Range | 0–85°C | 0–85°C | 0–85°C | 0–85°C | 0–85°C | 0–80°C |
| Packaging Size (LWH) | 1350×1150×1650 mm | 1350×1150×1650 mm | 1250×1050×1500 mm | 1250×1050×1500 mm | 850×850×1650 mm | 850×850×1650 mm |
| Gross Weight | 420 kg | 420 kg | 350 kg | 350 kg | 200 kg | 205 kg |
| Air Compressor | – | 4 kW, 0.5 m³/min | 4 kW, 0.5 m³/min | – | 7.5 kW, 0.9–1.0 m³/min, 8 bar | – |
Benefits of a Polyurea Spray Machine
Polyurea coatings protect suitable surfaces from water, wear, and certain chemicals. They can also form a seamless protective layer. However, the final result depends on the coating material, surface preparation, equipment settings, and application process.
Consistent Material Delivery
The equipment delivers two coating components at a controlled ratio. Correct proportioning supports even coating quality and helps reduce material defects. Operators should follow the coating manufacturer’s instructions during application.
Controlled Heating and Pressure
Many polyurea formulations require specific temperatures and pressures. A suitable system helps maintain the required working conditions, supporting steady material flow during spraying.
Flexible Applications
Contractors may use the equipment for concrete waterproofing, industrial surface protection, or infrastructure maintenance. The right configuration depends on the coating material and the demands of each project.
Before selecting a machine, confirm that its operating conditions match the technical requirements of your chosen coating.
Applications for Polyurea Coating Machine
Polyurea coatings serve a range of industries because they can create continuous protective layers on properly prepared surfaces. Their suitability depends on the coating formulation and conditions at the job site.
1. Concrete Waterproofing
Roofs, basements, tunnels, and water-related structures may require waterproof protection. A suitable polyurea system can help prevent water penetration when the substrate is prepared correctly and the coating meets project requirements.
2. Industrial Floor Protection
Factories, workshops, and storage areas may need coatings that resist abrasion and regular surface wear. The coating should match the expected traffic, chemical exposure, and cleaning conditions.
3. Metal Surface Protection
Steel structures, tanks, and industrial components may require protection against moisture and environmental exposure. Proper surface preparation is essential for coating adhesion.
4. Infrastructure Maintenance
Bridges, drainage structures, and concrete facilities may need protective coatings during construction or repair work. Contractors should select a suitable coating system according to the site’s exposure conditions and maintenance needs.

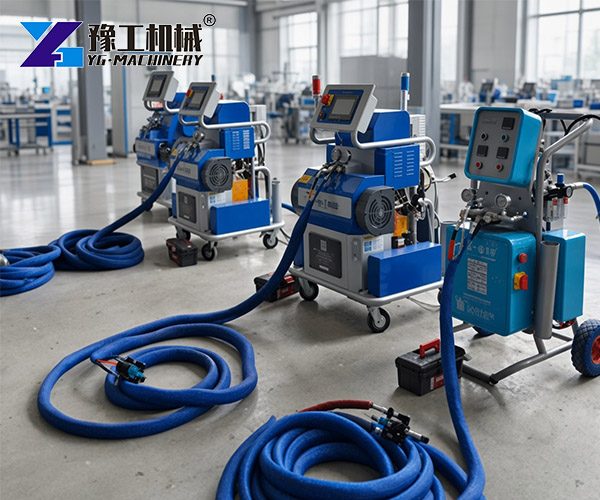

A Polyurea Waterproofing Spray Machine may be suitable for projects that require sprayed waterproofing. Always confirm the coating formulation and application method with the material supplier.
What to Check Before Buying a Polyurea Spray Machine For Sale
Selecting polyurea spray equipment involves more than comparing prices. Consider the following points before placing an order.
Coating Material Compatibility
Identify the exact coating material you plan to use. Different formulations may require specific heating, pressure, mixing, and cleaning conditions. Ask the supplier to confirm equipment compatibility before ordering a Polyurea Spraying Machine.
Project Size and Work Conditions
Consider the surface area, spraying frequency, site access, and expected workload. Large industrial projects may require a different setup from repair jobs or occasional waterproofing work. Check how easily the polyurea coating machine can be moved and installed at your site.
Power and Air Supply
Review the available electrical supply and compressed air source at the work location. Confirm that your facilities meet the machine’s requirements before delivery to avoid installation problems.
Maintenance and Spare Parts
Ask about routine maintenance, replacement parts, technical documentation, and after-sales support. Clear service information makes it easier to plan equipment use over time.
Total Purchase Cost
When comparing the Polyurea Spray Machine Price, consider the complete equipment setup rather than the machine alone. Depending on the configuration, you may also need an air compressor, spray gun, hoses, protective equipment, and other accessories. Confirm which items are included in the quotation.
Provide your coating type, application, site conditions, and expected workload when requesting a quotation. This information helps the supplier recommend a suitable configuration.
About YG Machinery
YG Machinery has more than 20 years of experience in machinery manufacturing and supplies equipment to customers in over 200 countries and regions. The company offers factory-direct supply, CE-certified products, and technical support for overseas customers.
In addition to the Polyurea Coating Machine, YG Machinery also supplies the Polyurethane Spray Machine, Mortar Spraying Machine, GRC Spray Machine, and other spraying equipment for different construction and coating applications. Each machine is designed for specific materials and project needs. Contact YG Machinery to discuss your application, compare available equipment, and request a quotation.【WhatsApp/WeChat/Phone/Skype】+86 13937183602
