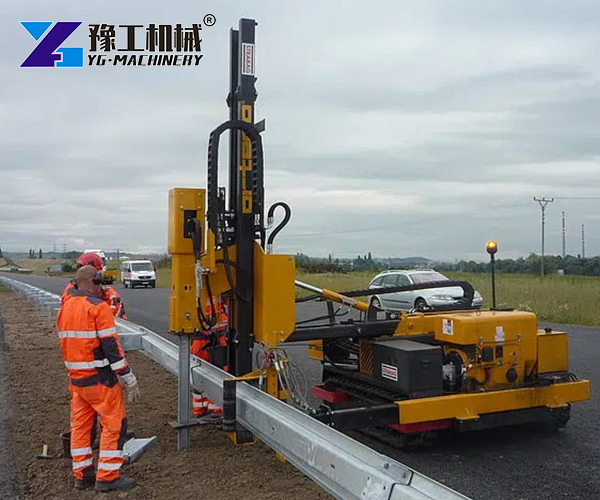

A guardrail pile driver does one job on a highway site: it pushes steel posts into the ground fast, straight, and safely. A smooth installation day depends on how well the machine matches the ground, the slope, and the pace of work. When the match is poor, problems show up fast. A hammer that hits too hard can crack thin-walled posts. A machine that lacks brake control may slide on a wet shoulder. A mast that is too tall can tilt on uneven ground and bend the pile. Any of these issues slows the crew and adds cost.
Field experience points to the same fix. Match impact energy to the post and soil. Choose a braking system for slope work. Set mast height to the site conditions. These points prevent most field failures and keep the installation schedule on track. A machine built around them will drive posts with less rework and fewer delays.
Guardrail Pile Driver Specifications

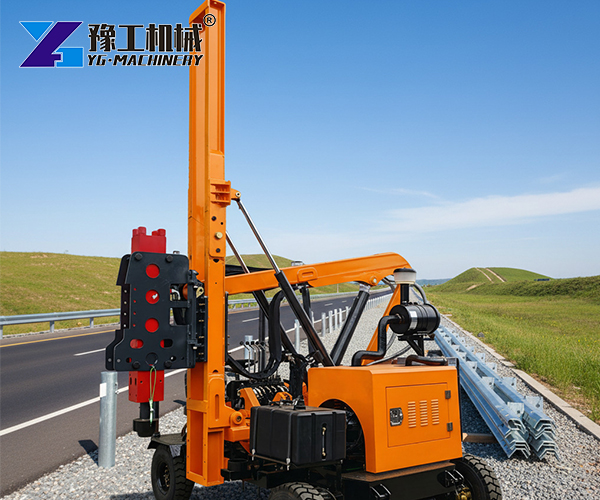

The model below uses a compact four-wheel configuration for roadside guardrail installation. It balances mobility with enough power to handle typical highway post driving.
| Model | Small four-wheel | Drive mode | Rear wheel drive forward direction |
| Power | 37kw | Walking style | Hydraulic motor double-walking |
| Rotating speed | 2400 r/min | Tires | Four Wheels650-16 |
| Oil pump | Dual oil pump | Motor | Yunnei 490 |
| Chassis | Stable car chassis | Shipping Dimensions | 3.4*2.1*2.75m |
| Weight | 3.5T | Cooling system | Dual fan cooling |
| Braking method | Air brake |
Key Advantages of the Guardrail Pile Driver
Four design points stand out on roadside projects. Each one solves a common field problem.
- Compact footprint. The 3.5 T frame and 650-16 tires fit narrow shoulders and tight access roads. Crews spend less time clearing space and more time driving posts.
- Stable chassis with air brake. The car-type chassis and air brake system hold the machine on slopes. This reduces rollback risk and keeps the mast vertical.
- Dual fan cooling. Two fans keep engine temperature steady during long shifts in summer heat. Overheating stops drop, and the machine stays on schedule.
- Dual oil pump. Two pumps support steady hydraulic flow for the hammer and walking motors. This guardrail piling machine moves smoothly and puts less strain on the system.
Selection Factors for a Guardrail Post Driver
Three practical points separate a suitable machine from a poor match.
- Impact energy must match the pile, not the brochure. Higher single impact energy is not automatically better. A hammer set too high can crack thin-walled posts or deform the pile head. Too low, and the post refuses to penetrate compact soil. For most highway jobs, a single impact energy near 1000 J delivers steady penetration with minimal pile damage.
- Slope stability depends on the braking system. Highway shoulders and embankments are rarely flat. Air brake control holds position on grades and stops automatically if pressure drops. This matters more than extra engine power on a sloped site.
- Mast height should support control, not ego. A taller mast raises the machine’s center of gravity and adds risk on uneven ground. A lower, adjustable mast keeps the hammer vertical on cross-slopes and protects pile accuracy.
Core Components of a Guardrail Pile Driver
A reliable machine depends on four main parts. Each part supports steady post driving and safe operation on the road shoulder.
- Hydraulic hammer. The hammer delivers impact to the pile head. A well-matched hammer drives the post without cracking the steel. Operators can adjust stroke energy to suit soil and post type.
- Vertical mast. The mast guides the hammer and keeps the post upright. A strong mast resists vibration and holds alignment on cross-slopes. Daily checks on the mast guide rail prevent play and tilt.
- Chassis and brake system. The chassis carries the machine and keeps it stable. Air brake control holds the unit on grades and reduces rollback risk. A stable base protects both the crew and the pile line.
- Hydraulic system. Dual pumps feed the hammer and walking motors. Steady oil flow keeps impact rhythm even and movement smooth. Clean oil and tight connections extend pump life.
These parts work as one system. Weak links show up as bent posts, slow cycles, or unsafe movement on slopes. When choosing a guardrail pile driving machine, review each component and ask how it handles your typical ground. Good components do not guarantee good results, but poor ones almost always cause trouble.
Daily Care for Your Guardrail Post Driver
Dust, stone chips, and constant vibration punish the machine. Most failures trace back to missed lubrication, not broken parts. A short daily routine protects the investment.
- Lubricate sliding surfaces every shift. The horizontal telescopic guide rail and the vertical guide rail contact faces need oil once a day. Wipe away grit before applying new grease.
- Grease every pin and cylinder point. Each cylinder hinge and working pin carries a grease nipple. Fill them daily to prevent seizing.
- Clean and oil the mast chain. If your machine uses a chain-driven mast, brush off debris after work and apply engine oil before the next start.
- Check hydraulic connections and oil level. Look for leaks at pipe joints and confirm the oil level sits in the normal range before the engine runs.
Contractors often describe the rule as “three parts use, seven parts care.” A few minutes of daily attention cuts unexpected downtime far more than it costs.

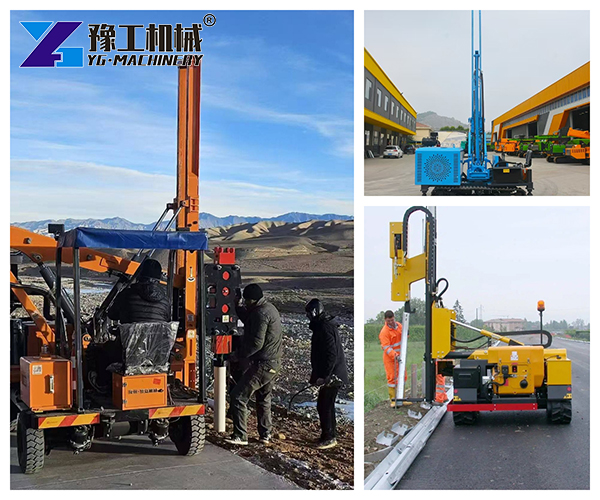

Highway Guardrail Pile Driver Support from YG Machinery
YG Machinery builds the machine above and a wider line of foundation equipment for road, solar, and civil projects. The range includes the Solar Pile Driver for photovoltaic foundations, the Fully Hydraulic Core Exploration Rig for geotechnical sampling, and the Horizontal Directional Drilling Machine for underground utility crossings.
If you are comparing a guardrail pile driver for sale, the YG team can help you match impact settings, braking configuration, and mast height to your ground conditions. Share your project details, and YG Machinery will respond with a practical recommendation and a clear quotation.【WhatsApp/WeChat/Phone/Skype】+86 13937183602
