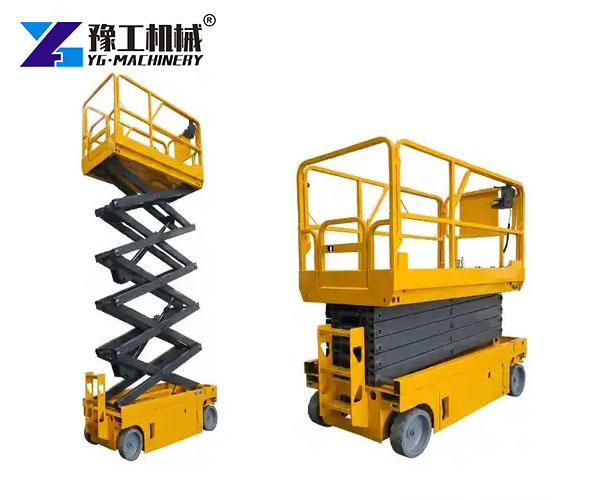

Hydraulic Scissor Lift for Industrial Lifting
A Hydraulic Scissor Lift provides a practical way to raise workers, tools, and materials to different working heights. It combines hydraulic power with a scissor-arm structure for smooth vertical movement. This design suits factories, warehouses, workshops, construction sites, and equipment maintenance.
The vertical lifting system works well in areas where floor space is limited. A stable platform gives operators room to carry approved tools and materials during elevated work. YG Machinery offers several models for different lifting heights and load requirements.

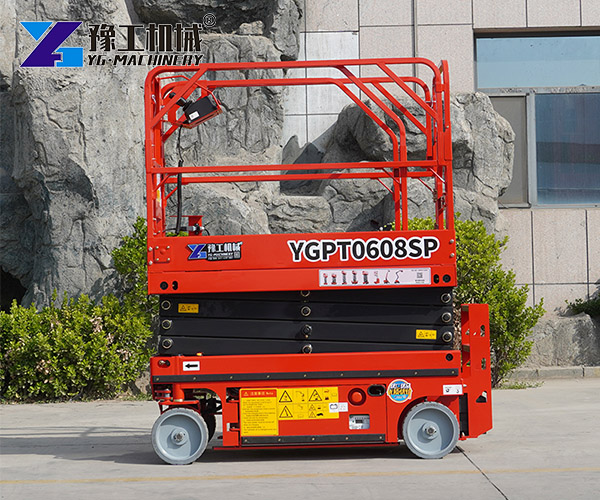

Mobile lifting equipment also gives users more flexibility than fixed platforms. Operators can move the machine between suitable work areas when needed. This feature makes it useful for maintenance, installation, inspection, and other routine tasks.
Hydraulic Scissor Lift Platform Specifications
Different applications require different lifting heights, load capacities, and platform sizes. YG Machinery provides several models to meet these needs. Buyers can compare the main specifications below before selecting a suitable machine.
| Model | YG0608SP | YG0608 | YG0810NP | YG0810 | YG1012 | YG1214 | YG1416 |
| Up(m) | 5.8 | 6 | 8 | 8 | 10 | 11.8 | 13.7 |
| Load(kg) | 230 | 450 | 230 | 450 | 320 | 320 | 230 |
| Platform size(m) | 1.67*0.74 | 2.27*1.12 | 2.27*0.81 | 2.27*1.12 | 2.27*1.12 | 2.27*1.12 | 2.64*1.12 |
| Outline dimensions/guardrail folding(m) | 1.86*0.76*1.84 | 2.48*1.19*1.66 | 2.48*0.83*1.99 | 2.48*1.19*1.78 | 2.48*1.19*1.91 | 2.48*1.19*2.03 | 2.85*1.25*2.105 |
| Lifting motor | 24v/3.3kw | 24v/3.3kw | 24v/3.3kw | 24v/3.3kw | 24v/3.3kw | 24v/4.5kw | 24v/4.5kw |
| Weight(kg) | 1580 | 2170 | 2260 | 2360 | 2640 | 2980 | 3600 |
Key Features of the Scissor Lift Platform
The equipment combines a strong scissor structure with a hydraulic lifting system. This design offers several advantages for industrial users.
- Stable vertical lifting: The scissor arms support steady platform movement during lifting and lowering.
- Practical working space: The platform gives operators room for approved tools and materials.
- Multiple model options: Different models cover various height and load requirements.
- Efficient use of space: The vertical structure works well in areas with limited floor space.
- Straightforward operation: Operators can control the lifting and lowering functions with ease.

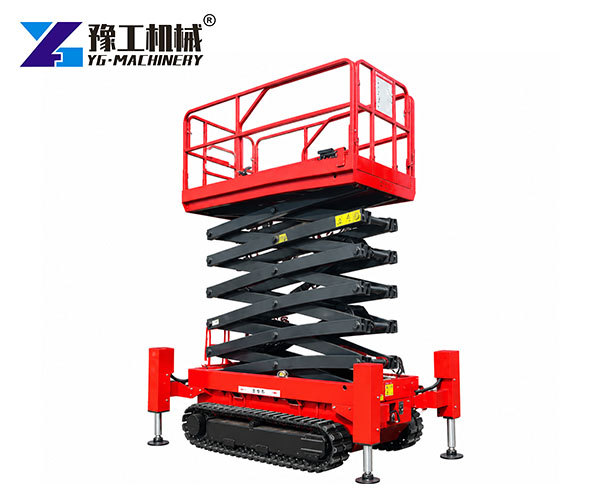

For warehouse and factory work, a Hydraulic Lifting Platform can provide a convenient alternative to ladders for suitable elevated tasks. It also helps operators maintain a more stable working position.
How a Hydraulic Scissor Lift Works
The lifting process starts when the operator activates the hydraulic system. Hydraulic force then drives the scissor arms upward. As the arms extend, they raise the platform to the required working height.
Lowering follows the opposite movement. The hydraulic system allows the scissor arms to move down in a controlled way. The platform then returns to a lower position.
A normal operating process includes these steps:
- Position the machine on a suitable and stable surface.
- Check the platform and load before starting the lifting process.
- Raise the platform to the required working height.
- Complete the work within the machine’s rated operating limits.
- Lower the platform after finishing the task.
This simple vertical movement makes the equipment suitable for many routine industrial jobs.
Choosing the Right Hydraulic Scissor Lift Platform
Selecting the right model requires more than checking the maximum lifting height. Buyers should consider several factors before placing an order.
Working height should match the actual height of the work area. A model with unnecessary height may increase equipment size and cost.
Load capacity must cover the total weight of workers, tools, and materials. Always consider the complete working load rather than the weight of the operator alone.
Platform size also affects daily operation. A larger platform provides more working room, while a compact platform may suit narrow areas.
Overall dimensions matter during transportation and installation. Check entrances, aisles, storage areas, and available working space before purchasing.

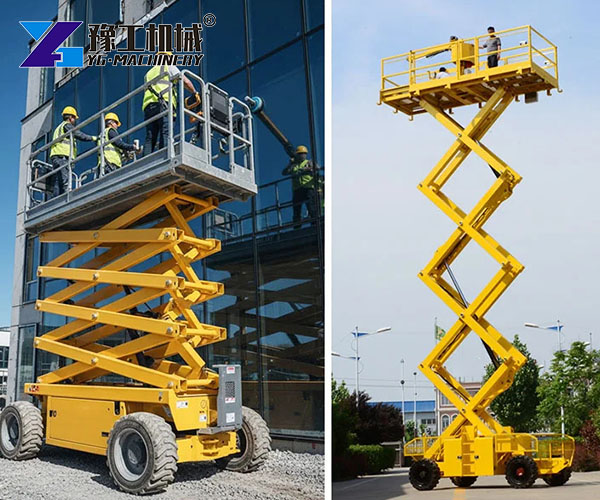

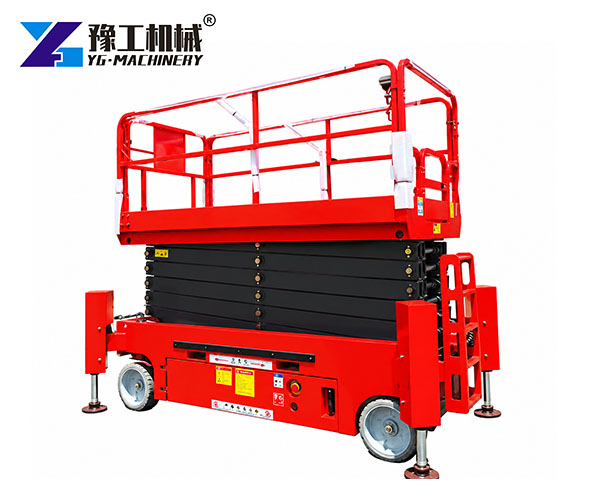

For customers searching for a Hydraulic Lift Platform for Sale, providing detailed application information can make model selection easier. YG Machinery can recommend a suitable option according to the required height, load, and working conditions.
Hydraulic Scissor Lift and Electric Scissor Lift Comparison
Hydraulic and electric scissor lifts can both support elevated work, but their applications may differ.
A hydraulic model suits many industrial tasks that require stable vertical lifting and regular operation. Its structure can support different platform sizes and load requirements.
An Electric Scissor Lift may be a better choice for certain indoor applications. Low-emission operation can make electric equipment suitable for enclosed work areas where exhaust emissions are a concern.
The right choice depends on the working environment, required capacity, lifting frequency, available power, and operating conditions. Buyers should evaluate these factors before selecting equipment.
Safe Operation and Maintenance
Proper operation helps protect both workers and equipment. Operators should receive suitable training and follow the manufacturer’s instructions.
Important practices include:
- Inspect the machine before regular use.
- Check hydraulic components for signs of leakage.
- Inspect scissor arms, pins, and connection points.
- Keep the platform clean and free from loose objects.
- Check safety devices before operation.
- Never exceed the rated load.
- Keep people away from unsafe areas during lifting.
- Follow the recommended maintenance schedule.
Regular inspection can help operators identify wear or other problems early. Timely maintenance also helps reduce unexpected downtime.
YG Machinery Lifting Equipment Solutions
YG Machinery supplies lifting equipment for industrial, construction, warehouse, and material-handling applications. Its product range includes Hydraulic Scissor Lift, Electric Scissor Lift, Articulating Boom Lift, and Telescopic Boom Lift models.
Each type serves different access and lifting requirements. Scissor lifts work well for vertical access, while boom lifts provide greater flexibility when workers need to reach areas beyond the machine’s base.

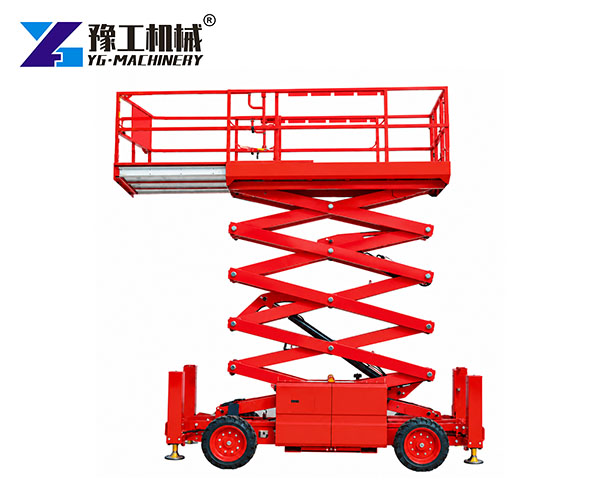

If you need a Scissor Lift Platform for a specific project, contact YG Machinery with your required lifting height, load capacity, platform size, and application. The team can help you select a suitable model and provide a product quotation.【WhatsApp/WeChat/Phone/Skype】+86 13937183602
