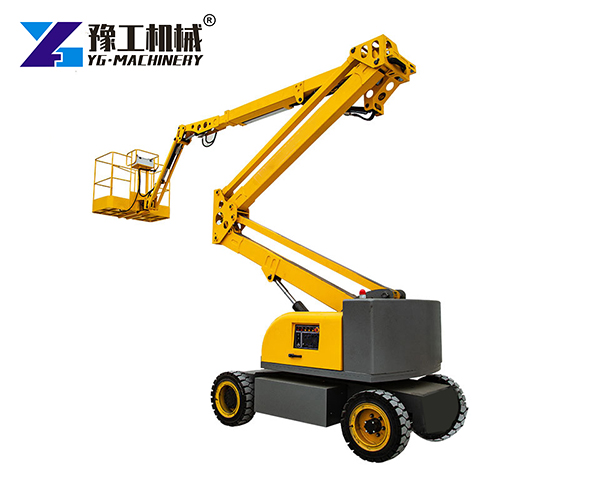

An Articulating Boom Lift is designed for projects that require flexible access to elevated areas and accurate positioning during aerial operations. Its articulated boom structure allows the platform to move around obstacles and reach different working positions.
With flexible movement and stable lifting performance, this equipment is suitable for construction, building maintenance, industrial inspection, and installation work. It helps operators complete tasks in areas where traditional lifting equipment may have limited access.
The combination of vertical lifting and horizontal extension makes this type of equipment a practical choice for complex job sites. It provides better working flexibility when operators need to reach high or hard-to-access locations.
Articulated Boom Lift Parameters
| maximum working height | 12m | |
| Maximum platform height | 10m | |
| maximum horizontal extension | 5.8m | |
| Maximum span height | 4.78m | |
| Maximum carrying capacity | 200kg | |
| Gradeability | 25% | |
| Minimum turning radius | 2.16m | |
| Running speed (km/h) | decline | 3km/h |
| rising | 0.8km/h | |
| Closing length | 4.35m | |
| Car closing width | 1.5m | |
| closing height | 1.99m | |
| Platform size (length × width × height) | 1.1m×0.65×1.13m | |
| turntable rotation | 355° | |
| Platform rotation | 120° | |
| Ground clearance | 0.15m | |
| Drive wheel size | 0.59*0.19/0.66*0.17m | |
| gross weight | 4700kg | |
| control voltage | 24V | |
| Battery | 48/320 V/Ah | |
| charger | 48/40 V/A | |
| Hydraulic tank volume | 40 L | |
| Wheelbase | 1.65m | |
Key Features of Articulating Boom Lift
An articulating boom lift combines flexible movement, stable operation, and convenient control. It is suitable for projects that require accurate positioning at height.
Main advantages include:
Flexible boom movement
The boom system can extend and fold according to different job conditions. Operators can reach areas above obstacles, machines, or structures.
Wide working range
The articulated design allows the platform to move in multiple directions. This helps complete tasks in areas where straight lifting equipment may have limitations.
Stable platform performance
The working platform provides enough space for operators and necessary tools. It supports maintenance, installation, and inspection work.
Convenient operation
The control system allows operators to manage lifting, rotation, and driving functions easily during daily use.

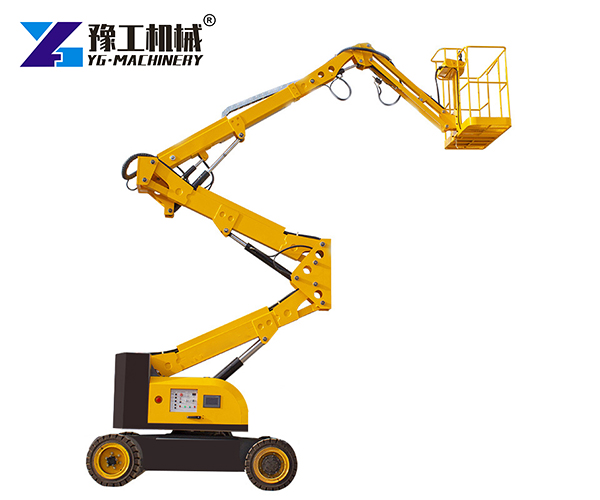

Where A Mobile Articulating Boom Lift Can Be Used
A articulated boom lift is widely used in industries that require flexible access to elevated working areas. Its mobility and adjustable arm design make it suitable for different job sites.
Common applications include:
Construction projects
Workers can use the equipment for building installation, exterior maintenance, and high-level finishing work.
Industrial maintenance
Factories and workshops often need aerial equipment for equipment inspection, lighting maintenance, and pipeline work.
Warehouse operations

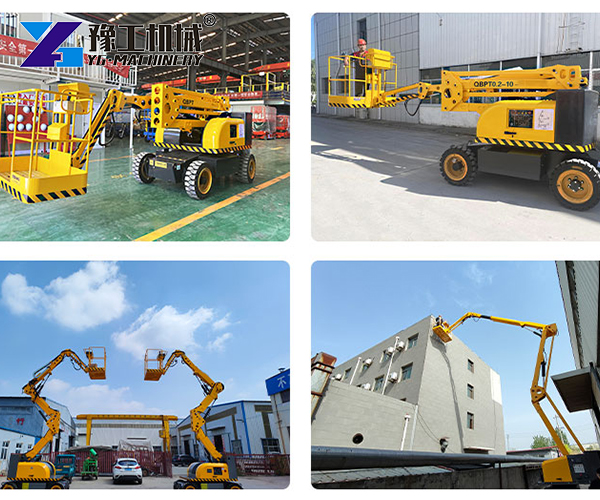

The articulating aerial lift can support tasks such as facility repair and equipment checking in large indoor spaces.
Public infrastructure
It is also suitable for maintenance work in airports, stations, stadiums, and other large facilities.

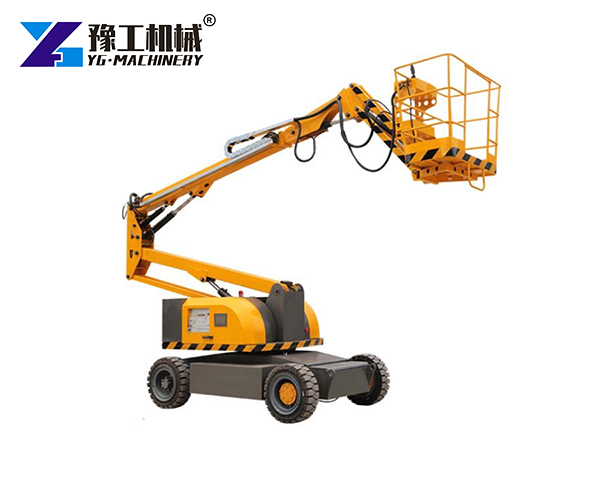

Factors To Consider Before Choosing Articulating Lifts For Sale
Selecting suitable articulating lifts for sale requires careful consideration of working conditions and project needs.
Several factors should be evaluated:
Working height requirements
Confirm the required height range before purchasing. The equipment should match the actual working environment.
Power source selection
Different projects may require different power options. An electric boom lift can be suitable for areas that require low noise and clean operation.
Site conditions
Consider factors such as floor conditions, available space, and transportation routes before choosing equipment.
After-sales support
Technical support and spare parts availability are important for long-term equipment use.
What Makes A Boom Lift With Articulated Arm Different
A boom lift with articulated arm provides additional flexibility compared with traditional vertical lifting equipment. The multi-section arm structure allows the platform to move around obstacles and reach difficult working positions.
The main difference is the movement method. Straight boom lifts mainly provide direct upward and outward extension, while articulated designs offer more flexible positioning.
This makes articulated equipment suitable for projects where access routes are limited or working areas are not directly below the lifting point.
Maintenance Tips For Long Term Equipment Performance
Regular maintenance helps maintain equipment performance and reduce unexpected downtime.
Operators should pay attention to the following points:
Inspect hydraulic systems regularly
Check hydraulic oil levels and connection points to ensure smooth operation.
Check electrical components
Battery systems, control panels, and wiring should be inspected according to operating conditions.
Maintain moving parts
Boom joints and rotation systems require regular checks to keep movement stable.
Follow safe operating procedures
Operators should complete necessary inspections before use and avoid exceeding the rated load.
Proper maintenance can extend equipment service life and improve daily working safety.
Get The Right Lifting Solution From YG Machinery
Choosing suitable aerial equipment requires proper configuration according to the working environment, access conditions, and project requirements. YG Machinery provides professional support from product selection to equipment supply, helping customers find suitable lifting solutions for different applications.
In addition to the Articulating Boom Lift, YG Machinery offers a wide range of construction equipment, including mobile hydraulic lift platform, Scissors Lift, Mini Spider Crane, and other machinery. Contact YG Machinery to discuss your project requirements and get detailed product information and quotation support.【WhatsApp/WeChat/Phone/Skype】+86 13937183602
