A metal container pool uses a converted container structure to create a prefabricated swimming space for residential yards, resorts, rental properties and commercial projects.
YG container pools use a steel frame structure with insulation configurations and optional temperature control systems. The design supports different installation methods, including above-ground, semi-buried and underground applications.
📋 Metal Container Pool Specifications
The following parameters come from the YG Machinery product page.
| Component | Specification |
|---|---|
| Frame | Galvanized cold rolled sheet |
| Top frame section height | 150mm |
| Top frame thickness | 3.0mm |
| Bottom frame section height | 150mm |
| Bottom frame thickness | 3.0mm |
| Steel column | Galvanized cold rolled sheet, 150mm section height, 3.0mm thickness |
| Surface treatment | Powder coating / fluorocarbon coating |
| Corner | Cast steel, 178mm × 162mm × 118mm |
| Roof purlin | C90 galvanized |
| Roof panel | Rock plate, 50mm |
| Ceiling panel | Nephrosis-colored steel plate, 0.5mm |
| Floor board | Cement board, 15mm thickness |
| Floor glue | 2.0mm thickness |
| Wall structure | Glass cotton colored steel sandwich panel |
| External wall panel | Colored steel panel, 0.6mm |
| Internal wall panel | Colored steel panel, 0.5mm |
| Window | PVC steel window with screen and guardrail |
| Window size | 1110mm × 1100mm / 1500mm × 1100mm |
| Door | Steel door, 880mm × 2020mm |
| Electrical system | Switch box, sockets, LED lighting |
| Voltage | 220V, 50Hz, 3 pole, 32A |
| LED light | Single tube LED light, 15W |
| Drainage pipe | Galvanized pipe, 2695mm / 5630mm |
⚙️ Working Principle Of Container Above-Ground Pools
A container above-ground pool system works by combining a steel container structure, waterproof pool interior, insulation layer, and water management equipment.
The steel frame provides the main support structure. The interior pool layer prevents water leakage, while insulation materials reduce heat transfer between the pool water and the external environment.
The basic working process includes:
- 💧 Water Circulation
The filtration system circulates pool water through pumps and filters. This process removes impurities and keeps water conditions suitable for regular use.
- 🌡️ Temperature Control
A temperature control system can be selected according to climate requirements. YG states that the constant temperature module uses air source heat pump technology, with energy consumption stated as 1/4 of traditional electric heaters.
- 🏗️ Structural Protection
The galvanized steel frame and surface treatment protect the pool structure from outdoor environmental exposure.
Details of Metal Container Pool
YG container pools combine a steel container structure with insulation materials and interior pool systems. The design focuses on outdoor installation, weather conditions and long-term operation requirements.

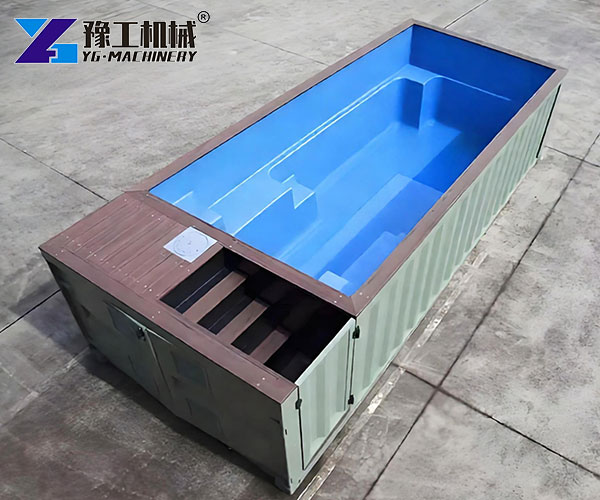

🔩 Galvanized Steel Frame
The main structure uses galvanized cold-rolled sheet components. The frame provides structural support for transportation, installation and outdoor use.
🧱 Insulation Wall System
The wall structure uses glass cotton colored steel sandwich panels. This design reduces heat exchange between pool water and the external environment.
For regions with cold winters, insulation configuration helps maintain water temperature and reduces heat loss.
🎨 Surface Protection Treatment
The steel structure uses powder coating or fluorocarbon coating surface treatment. This improves outdoor resistance and supports different installation environments.
Complete Supporting Components
The container pool configuration includes:
- PVC steel windows with screens and guardrails
- Steel doors
- Electrical system
- LED lighting
- Drainage system
🌍 Container Above Ground Pools Applications
A container above-ground pool system fits different outdoor projects because of its prefabricated structure and flexible installation methods.
| Application | Suitable Projects |
|---|---|
| 🏡 Residential | Backyard swimming pools, private villas, family leisure areas |
| 🏨 Hospitality | Resorts, hotels, outdoor entertainment spaces |
| 🏕️ Rental Properties | Holiday homes, Airbnb properties, outdoor recreation areas |
| 🏢 Commercial Areas | Fitness facilities, community swimming spaces |
🏡 Residential Outdoor Spaces
Homeowners can install a pool solution without long traditional construction periods. The container structure works well for yards, gardens, and private outdoor areas.
🏨 Hotels And Resorts
Hospitality businesses often need additional leisure facilities without major ground construction. A pool made of shipping containers provides a flexible option for expanding outdoor swimming areas.
🏕️ Temporary Or Relocation Projects
For rental housing, camps and seasonal projects, container pools can be installed in locations where permanent construction is inconvenient.
❄️ Cold Climate Regions
Customers in areas with winter temperature changes need better insulation performance. The combination of insulated panels and temperature control systems supports seasonal operation.
💰 Operating Cost Analysis for a Metal Container Pool
The total cost of owning a swimming pool includes installation, energy consumption, maintenance, and daily operation.
⚡ Energy Consumption
Pool temperature maintenance is usually the main operating expense in colder regions.
YG’s page states that the constant temperature module uses an air source heat pump system, with energy consumption stated as 1/4 of traditional electric heaters. Actual operating costs depend on:
- Local electricity price
- Outdoor temperature
- Pool usage frequency
- Required water temperature
🔧 Maintenance Requirements
- Water quality testing
- Filter cleaning
- Pump inspection
- Surface cleaning
- Drainage system checking
The modular structure makes maintenance access easier compared with some traditional underground pool systems.
🚚 Installation And Transportation
Because the pool uses a container-based structure, overseas buyers should consider:
- Local transportation regulations
- Crane or lifting equipment requirements
- Installation space
- Foundation conditions
Different countries may have different requirements for outdoor structures, electrical systems, and water treatment equipment.
📈 Long-Term Benefits Of Container Pool Investment
A metal container pool can create long-term value for both private and commercial users.
- Shorter Installation Period
Traditional swimming pool construction involves excavation, concrete work, and waterproof treatment.
A prefabricated container pool reduces on-site construction procedures and allows faster project preparation.
- Reduced Site Labor
The factory-produced structure decreases the amount of on-site assembly work.
For contractors and hospitality operators, this can reduce labor coordination requirements.
📌 How To Select The Right Metal Container Pool
Selecting a suitable pool requires consideration of three main factors: user demand, installation environment, and pool size.
🏠 Usage Requirements
Different users need different configurations.
- Private homes: focus on size, appearance, and daily maintenance.
- Hotels and resorts: consider capacity and frequent usage.
- Rental projects: consider installation speed and operating costs.
📍 Installation Conditions
Before purchasing, buyers should check:
- Available installation area
- Ground condition
- Transportation access
- Local weather conditions
For narrow sites or areas with difficult construction access, container structures can provide more flexible installation options.
📏 Pool Size And Configuration
Customers should select according to:
- Number of users
- Swimming purpose
- Heating requirements
- Supporting equipment needs
YG provides customized solutions based on project requirements, including structural configuration and supporting systems.
🌎 Overseas Customer Experience With Metal Container Pool
A resort operator from overseas contacted YG for an outdoor swimming pool solution after looking for a faster installation option than traditional concrete pools.
| Process | Details |
|---|---|
| 📩 Inquiry | Customer shared project location, installation area and seasonal climate conditions |
| 🔍 Requirement Confirmation | YG engineers checked pool size, insulation requirements and supporting configurations |
| 📦 Order & Delivery | The container pool was manufactured, inspected and shipped according to the project schedule |
| 🏗️ Installation | The customer completed site preparation and installed the pool with local lifting equipment |
| 🏊 Operation Feedback | The pool was used for outdoor leisure projects and seasonal swimming activities |
Project Results
- 🏨 Application: Resort outdoor leisure area
- 🌡️ Requirement: Temperature control for seasonal operation
- 🏗️ Installation: Reduced on-site construction procedures compared with traditional pool building
- 🔧 Maintenance: Regular water treatment and equipment inspection according to local operation conditions
- 📈 Feedback: Customer considered the container structure suitable for future outdoor expansion projects
❓ Metal Container Pool FAQ
Q: Can a metal container pool be installed outdoors?
A: Yes. The container structure is designed for outdoor installation. Customers should prepare suitable foundations and confirm local installation requirements.
Q: Can it be used in cold regions?
A: Yes. Insulation materials and temperature control configurations can be selected according to local climate conditions.
Q: Can YG customize the pool configuration?
A: YG can provide customized solutions according to customer requirements, including structure, insulation and supporting systems.
Q: Does the pool require professional installation?
A: Installation requirements depend on the project configuration and local conditions.
Q: How can winter operation be maintained?
A: Users can combine insulation structures and temperature control systems according to local weather conditions.
Q: Are replacement parts available?
A: YG provides equipment support and spare parts solutions according to customer requirements.
