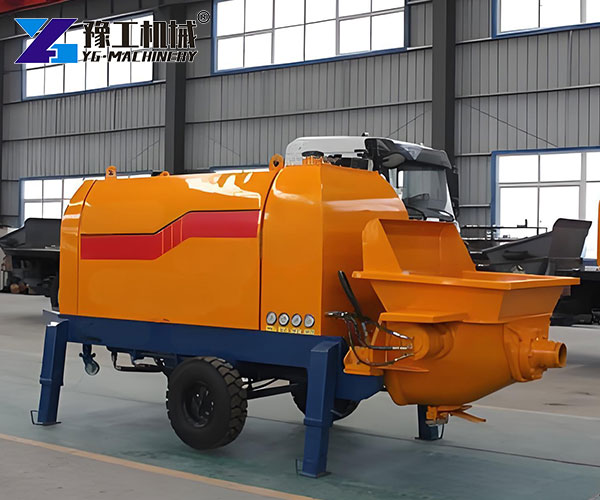

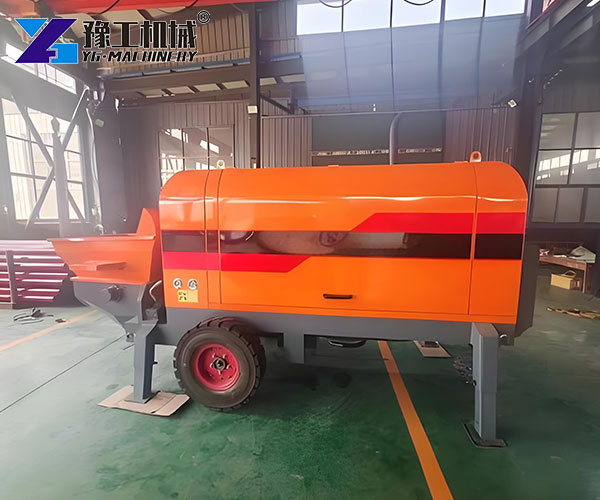

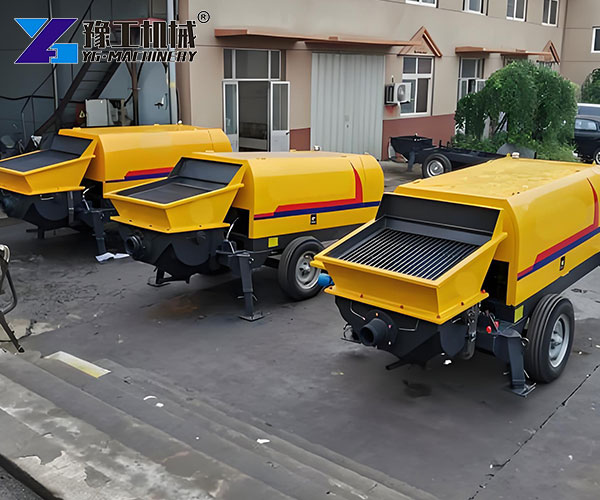

A towable concrete pump provides a practical option for projects that need concrete transportation in limited areas. It can move concrete from the mixing point to the working location through pipelines, reducing manual handling during pouring operations.
YG small concrete pumps are designed for different construction conditions. The available models include YG-20, YG-30, YG-40 and YG-50, with motor power from 22KW to 55KW, theoretical throughput from 16-35m³/h, and vertical conveying distance up to 150m.
Towable Concrete Pump Specifications
The following parameters come from the YG Machinery product page.
| Model | YG-20 | YG-30 | YG-40 | YG-50 |
|---|---|---|---|---|
| Motor power | 22KW | 37KW | 45KW | 55KW |
| Maximum outlet pressure | 26MPa | 28MPa | 28MPa | |
| Maximum theoretical throughput | 16-18m³/h | 20-22m³/h | 35m³/h | |
| Maximum aggregate size | ≤30mm | ≤40mm | ≤40mm | |
| Vertical conveying distance | 40m | 80m | 120m | 150m |
| Horizontal conveying distance | 80m | 140m | 2600m | 300m |
| Conveying pipe diameter | 80mm | φ80(100)mm | φ100(80)mm | Φ125/100mm |
| Whole machine weight | 1600kg | 2200kg | 2400kg | 2500kg |
| Dimensions | 3400×1200×1600mm | 3600×1500×1600mm | 4000×1500×1550mm | 4200×1700×1750mm |
Concrete Pumping Performance For Different Sites
The pumping distance directly affects equipment selection.
For low-rise residential construction, models with shorter vertical conveying distance can meet common foundation and slab pouring requirements.
For multi-floor buildings, underground structures or projects with longer pipelines, contractors need equipment with higher pressure and longer conveying distance.
YG models provide vertical conveying distances from 40m to 150m and horizontal conveying distances from 80m to 2600m according to different configurations.
⚙️ How Does a Trailer Pump For Sale Work?
A trailer pump for sale transfers mixed concrete through a pressure-driven pumping system. The machine receives concrete from the mixer, pushes the material through delivery pipes, and sends it to the required construction point.
The pumping process includes several working steps:
1. Concrete Feeding
Concrete enters the hopper from a mixer or manual feeding system. The hopper keeps concrete supply stable and reduces interruptions during operation.
2. Hydraulic Pressure Generation
The hydraulic system drives the pumping cylinders. The cylinders create pressure to move concrete through connected pipelines.
3. Pipeline Transportation
Concrete travels through delivery pipes to reach construction areas. Workers can arrange pipe routes according to project height, distance and site conditions.
4. Continuous Concrete Placement
The pumping system maintains a stable concrete flow, allowing workers to complete pouring tasks without repeated manual transportation.
Compared with traditional concrete handling methods, a towable concrete pump reduces manual carrying work and allows concrete placement in narrow or difficult-access locations.
Machine Structure And Component Design
YG towable concrete pump adopts a practical structure for overseas construction conditions. Each component supports transportation, operation and maintenance requirements.
- Hydraulic Pumping System
The hydraulic system provides the pumping force required for concrete delivery. It controls the cylinder movement and supports continuous pumping during construction.
- Concrete Hopper
The hopper receives concrete before pumping. The feeding structure helps maintain smooth material flow during operation.
- Delivery Pipeline Connection
The outlet supports connection with concrete pipes. Workers can adjust pipeline length according to construction distance and building height.
- Portable Frame Structure
The machine frame supports movement between different job sites. Contractors can relocate equipment according to project schedules.
- Control System
The control system allows operators to manage pumping operation and adjust working conditions according to concrete requirements.
🌍 Towable Concrete Pump Applications
Construction sites in different countries require flexible concrete delivery solutions. YG towable concrete pump is suitable for projects with limited access, small working areas and different pumping distances.
| Application | Typical Projects |
|---|---|
| 🏠 Residential | House foundations, villas, garage floors, extensions |
| 🛣️ Infrastructure | Road repair, drainage, sidewalks, bridge maintenance |
| 🏭 Commercial | Warehouses, small offices, agricultural buildings |
| ⛰️ Limited Access Sites | Mountain areas, narrow streets, underground projects |
💡 How To Choose A Towable Concrete Pump
Selecting suitable pumping equipment depends on the actual construction requirements. Overseas buyers usually consider three factors: project demand, working environment and concrete volume.
📌 Project Requirements
Choose the model according to concrete delivery distance, pouring frequency and required output.
- Small residential projects: suitable for lower output models.
- Commercial construction: consider higher pumping capacity.
- Long-distance transportation: select models with longer conveying distance.
📌 Site Conditions
The working environment affects equipment selection.
- Narrow construction areas need flexible equipment size.
- Multi-floor projects require higher vertical conveying ability.
- Remote sites need convenient transportation between locations.
📌 Concrete Volume
Daily concrete demand determines the suitable pumping capacity.
Small contractors can choose models for occasional projects, while companies handling continuous construction may need higher output configurations.
🌎 Overseas Customer Experience With Concrete Pump Equipment

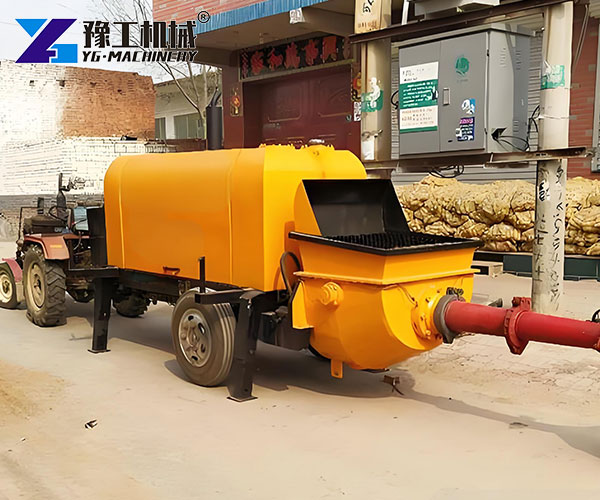

A residential construction contractor needed a concrete pumping solution for narrow sites where mixer trucks had limited access.
| Process | Details |
|---|---|
| 📩 Inquiry | Customer provided project type, pumping distance and site conditions |
| 🔍 Requirement Check | YG engineers confirmed concrete volume and recommended suitable model |
| 📦 Order & Delivery | Equipment was inspected, packed and shipped according to delivery requirements |
| 🏗️ Site Operation | The pump supported foundation and floor concrete pouring after installation |
Project Results
- 🏠 Application: Residential foundation and floor construction
- 📍 Site condition: Limited access construction area
- 👷 Operation: Reduced manual concrete transportation between mixing and pouring points
- ⏱️ Project effect: Shortened concrete placement preparation time
- 🔄 Usage: Suitable for repeated small and medium construction projects
❓ Towable Concrete Pump FAQ
Q: What projects can a towable concrete pump be used for?
A: It is suitable for residential construction, road repair, small commercial buildings, foundations and projects with limited access areas.
Q: How do I choose the right model?
A: Buyers should consider concrete volume, pumping distance, aggregate size and site conditions before selecting equipment.
Q: Can YG provide customized configurations?
A: YG engineers can provide equipment suggestions according to customer project requirements.
Q: How should the concrete pump be maintained?
A: Clean remaining concrete after operation, check pipeline connections and inspect wearing parts regularly.
Q: Are replacement parts available?
A: YG provides spare parts support according to equipment requirements and customer orders.
🏢 About YG Machinery
YG Machinery has more than 20 years of machinery manufacturing experience, providing construction equipment solutions for global customers.
| YG Advantages | Details |
|---|---|
| 🌍 Global Supply | Serving customers from different countries with overseas delivery support |
| 📜 Certification | CE certified equipment for international markets |
| ⚙️ Custom Solutions | Equipment selection and configuration based on project requirements |
| 🔧 Service Support | Technical consultation and after-sales support for overseas customers |
YG supplies concrete equipment solutions including towable concrete pump, self-loading mixer truck, and concrete pump truck for different construction requirements.
