A self-loading truck mixer is widely used in overseas construction environments where contractors need to control both concrete production and transport on the same machine. In many road construction sites, rural infrastructure projects, and mining access works, batching plants are often far away or not stable in supply. This creates delays in concrete delivery and affects daily pouring schedules. With a self-loading system, operators can load aggregates directly from the ground, mix concrete inside the drum, and transport it to the working point without waiting for an external supply. This structure is especially useful in job sites where terrain changes frequently, access roads are narrow, and continuous pouring is required without interruption.
Self-Loading Truck Mixer Reference Structure
| Specifications | 3-cubic-meter self-loading concrete mixer (3 m³) | 5-cubic-meter Self-Loading Concrete Mixer (5 m³) |
| Rated mixing capacity | 3 cubic meters | 5 cubic meters |
| Rated loading capacity | Approximately 4.5 cubic meters (varies slightly depending on material density) | Approximately 7.5 cubic meters (varies slightly depending on material density) |
| Discharging speed | Approximately 5-8 minutes per vehicle | Approximately 7-10 minutes per vehicle |
| Engine power | Approximately 95 kW (adjustable depending on model) | Approximately 120 kW (adjustable depending on model) |
| Machine weight | Approximately 7.5 tons (model may vary) | Approximately 11 tons (model may vary) |
| Maximum travel speed | Approximately 25 km/h | Approximately 22 km/h |
| Drive mode | Four-wheel drive | Four-wheel drive |
| Discharging method | Drum rotation for discharging, 360° rotatable discharge port | The drum rotates for unloading, and the discharge port rotates 360°. |
| Application range | Suitable for small projects, rural construction, municipal maintenance, remote areas, etc. | Suitable for medium-sized projects, infrastructure construction, roads, bridges, etc. |
| Main advantages | High flexibility, easy operation, and cost-effectiveness | High production efficiency, large mixing capacity per batch, suitable for large-scale production |
Functional Assembly of Self-Loading Mixer Machine
All assemblies are split into production core modules and outdoor auxiliary fittings based on the real construction workflow.

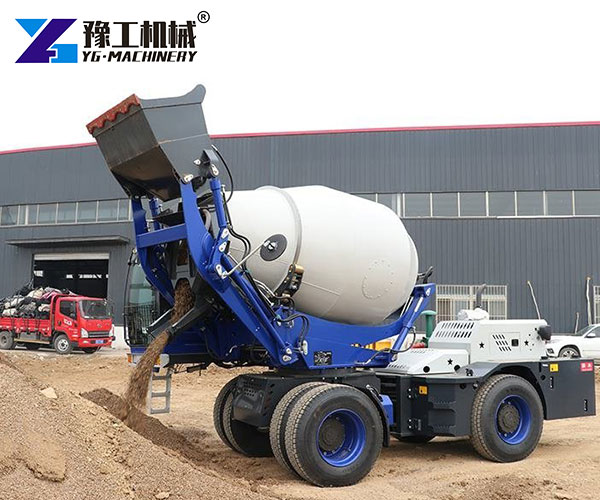

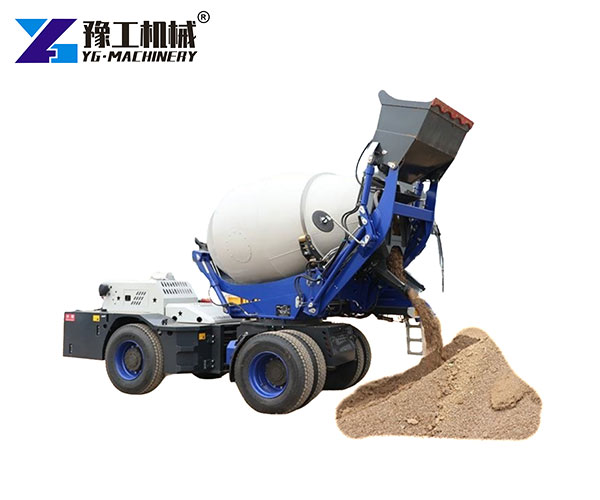

- Hydraulic feeding module: Front shovel bucket controlled by hydraulic circuits, auto-scoops sand, stone, and cement without manual carrying.
- Intelligent weighing module: Built-in sensor system records raw material volume, locks fixed mixing ratio to avoid uneven finished concrete.
- Rotary mixing drum module: Internal spiral blades sustain full stirring during transit to prevent material segregation.
- 360° discharge module: Rotatable outlet sends concrete to exact pouring positions and cuts aggregate waste. Auxiliary accessories include dustproof bucket covers, hydraulic pipeline protectors and daily maintenance tool kits, extending stable runtime in all-weather outdoor conditions.
Industrial-Grade Material Configuration of Self-Mixing Concrete Truck
- Load-bearing frame: International standard structural carbon steel, full stress relief welding to resist vibration on bumpy mountain roads
- Mixing drum liner: High-hardness wear-resistant cast alloy, lowers abrasion loss caused by long-term gravel friction
- Hydraulic pipelines: Multi-layer composite weather-resistant rubber, stable performance under high-temperature tropical or humid subtropical environments
- Connect joints: Seamless integrated forming process, blocks rainwater and dust erosion to cut daily failure risks
Full Classification Of Applicable Construction Scenarios
- Rural & remote construction: Village housing, mountain rural road expansion, off-grid school foundation works
- Municipal engineering: Urban road renovation, bridge & culvert pouring, drainage system reconstruction
- Real estate early-stage projects: New plot ground hardening, temporary site concrete supply
- Special terrain projects: Tunnel inner pouring, post-disaster emergency repair with insufficient supporting facilities
Cost Analysis: Rental VS Direct Purchase
Calculation basis: Overseas regional machinery tax, diesel consumption, and regular overhaul expenses
- Short-cycle projects (within 8 months): Rental mode is more suitable. Avoid equipment depreciation loss after project completion and save one-time high procurement capital.
- Long-term continuous engineering teams: Purchasing a concrete mixer truck self loading brings better long-term cost control.
Self-owned equipment allows custom maintenance cycles based on daily workload to slow component aging. Leased units usually have unknown internal wear, easily triggering sudden shutdowns and extra repair costs in tight construction phases. Independent equipment also removes leasing time limits, allowing flexible adjustment of daily concrete output as project progress changes.
Overseas customer feedback
A contractor in South Africa contacted us for a self-loading truck mixer for rural highway construction. The issue was unstable concrete supply from distant batching plants.
After evaluation, a 5m³ off-road model was selected based on terrain and output demand.
Process: inquiry → configuration → production → shipping → commissioning
Results after operation:
- Daily output increased by ~35%
- Labor reduced from 5 operators to 2
- Transport delays have been significantly reduced
- Continuous pouring improved across multiple road sections
The client confirmed that the self-loading mixer machine improved schedule stability and reduced waiting time.
FAQ
Q: What affects the self-loading truck mixer price most?
A: Capacity, drive system, and hydraulic configuration.
Q: Can it work without a batching plant?
A: Yes, it operates independently on site.
Q: What is the capacity range?
A: 3–6.5 m³ per cycle.
Q: Is it suitable for rough terrain?
A: Yes, 4WD models are designed for off-road work.
Q: How many operators are needed?
A: One operator is enough for full operation.
About YG
YG has over 20 years of experience in construction machinery manufacturing and holds CE certification for global markets.
We provide pre-sale consultation, customized solutions, and after-sales support for overseas projects.
Product range includes concrete pump systems, automatic car wash machines, DPF cleaning systems, and dry ice cleaning machines.
