Overseas construction operators often struggle with inefficient concrete preparation methods on job sites. Separate feeding, mixing, and hauling processes waste plenty of working hours, while bulky traditional machines fail to enter compact working zones. High replacement cost of non-standard parts also increases long-term operating expenses for most project teams. Self loading mixer machine can resolve all these on-site construction dilemmas efficiently.

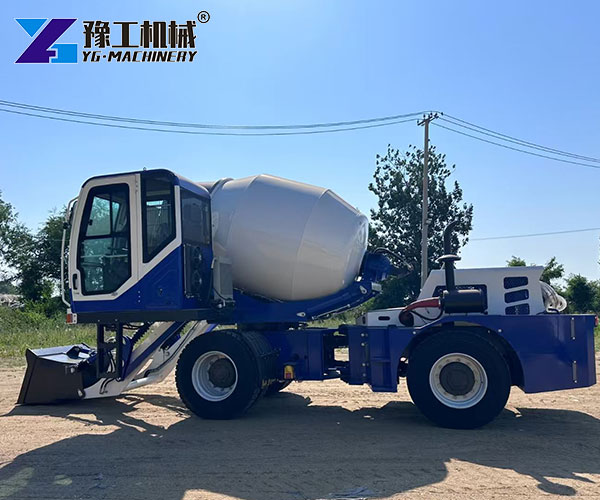

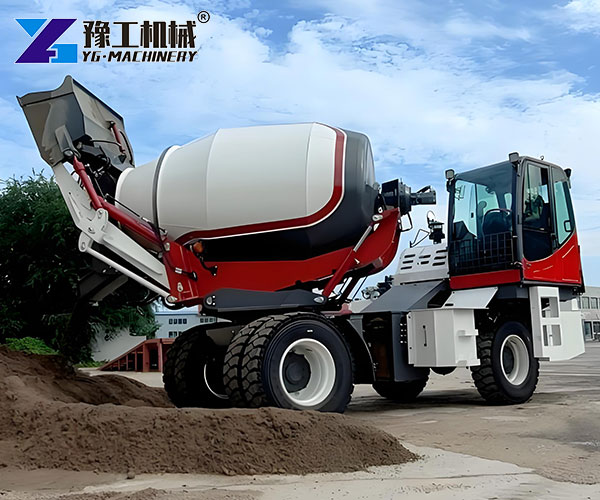

What is Self Mixing Concrete Truck
This is an integrated construction vehicle that combines feeding, mixing, and transportation functions. It needs no extra loading tools or separate mixing stations. Operators can finish all concrete making works directly on construction sites. It simplifies traditional complicated building material preparation steps greatly.
Self Loading Truck Mixer Complete Machine Performance Parameters
| Category | Specifications |
| Model | CMT1500 |
| Rated Power | 55kW |
| Engine Model | Quanchai 4B2-75m22 |
| Dimensions (L*W*H)(mm) | 6400*2550*2650 |
| Wheelbase | 2400mm |
| Vehicle Weight | 4185kg |
| Driving Form | Torque converter |
| Maximum Climbing Angle | 30° |
| Minimum Turning Radius | 4700mm |
| Minimum Ground Clearance | 280mm |
| Maximum Speed | 30km/h |
| Gearbox Model | ZL-265 gearbox |
| Gearbox Gears | 4 forward 4 back |
| Water Tank Volume | 400L |
| Water Supply Method | Time relay |
| Fuel Tank Capacity | 63L |
| Oil Capacity | 16L |
| Hydraulic Capacity | 63L |
| Reducer | KY07-2-0 |
| Pump | FC 50/40 |
| Motor | BM5-160 |
| Drum Capacity | 1700L |
| Drum Rotation Speed | 13 rpm |
| Concrete Yield | 1.5 m³/can |
| Mixing Drum Features | Double helical agitating screw and convex bottom |
Core Working Advantages of Concrete Mixer Truck Self Loading
- It can save more usable space on crowded construction sites
- It effectively reduce the number of on-site operating staff
- It shorten the waiting time between different batches of concrete
- New staff can quickly master basic operating methods
- It keep raw material waste within a low reasonable range
- The rotating discharge design adapts to different pouring positions
- Strong chassis structure adapts to complex temporary road conditions
Premium Raw Material and Wear Resistant Structure
We select reliable building materials to extend the whole machine service life. Thickened manganese steel is used to make the mixing drum to resist daily wear. Internal mixing blades go through a professional shaping process to keep a stable shape. The whole vehicle chassis adopts reinforced welding technology to improve bearing capacity. The outer body is sprayed with multi-layer anti-rust paint to adapt to the outdoor environment. Core transmission parts use high-standard accessories to reduce running loss. Vulnerable parts adopt unified specification design for easy later replacement.
Common Application Scenarios
- Concrete pouring for rural residential buildings
- Foundation construction of village roads
- Foundation casting of small municipal projects
- Dispersed construction projects in remote areas
- Daily road repair and partial renovation work
Working Efficiency and Production Improvement
- Streamline all concrete production links on the working site
- Cut short the pre-construction preparation period obviously
- Avoid rework issues brought by uneven mixed concrete
- Help construction teams complete scheduled projects in advance
- Rational staff arrangement keeps daily labor expenditure stable
Factors Affecting Equipment Purchase Cost
- Daily concrete consumption standard decides matched engine power
- Actual site space condition limits the overall vehicle dimension
- Local long-term weather features confirm exterior protection grade
- Regional spare parts supply channels influence later maintenance budget
- Daily continuous working duration sets the standard of core parts
Real Overseas Customer Use Case
Many Southeast Asian builders choose our construction machinery. A contractor in Myanmar contacted us for rural road projects, struggling with insufficient concrete supply and high labor input. We recommended 3m³ self loading mixer machine to match their construction needs. Goods were inspected, shipped and cleared customs in 18 days, and put into normal use after simple debugging.
Actual using effects
- Daily concrete output rises to 95m³
- On-site workers are cut down greatly
- Overall construction cost gets well controlled
“This machine works steadily in complex field conditions. It makes our concrete production much easier and saves lots of running cost.”
— Local Myanmar Contractor
YG Company Strength Introduction
We boast over 20 years of professional experience in construction machinery manufacturing.
- All finished equipment holds CE certification to satisfy global market access rules.
- We offer detailed pre-sales consultation and targeted equipment selection plans.
- Custom solutions are available to fit special working site requirements.
- Full set after-sales support ensures smooth long-term operation for all users.
Apart from this machine, we also supply concrete pumps, aerial work platforms, and road maintenance machines. Our products gain wide recognition and reliable reputation among global construction clients.
