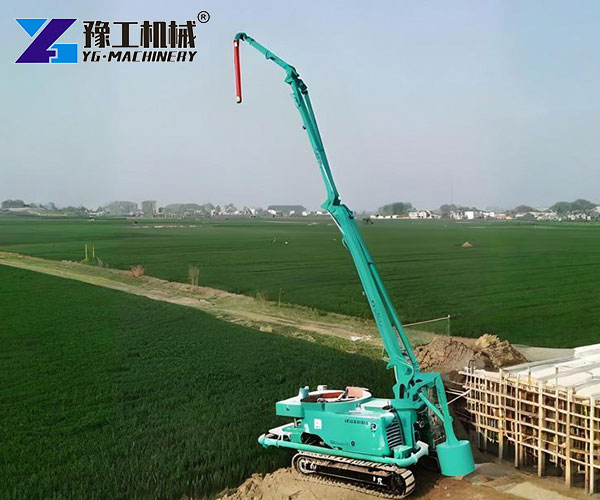

In many overseas construction zones with complicated landforms, traditional wheeled pumping machines face great movement obstacles. It is hard for them to enter sloped lands, muddy sites, and remote working areas. In view of such actual construction difficulties, more and more engineering teams choose a crawler concrete pump to finish daily concrete conveying and pouring tasks efficiently.
Machine Technical Parameters
| Item | Parameter / Sub-item | Specification / Value | Unit / Remarks |
| Driving System | Fuel Type | Diesel | |
| Displacement / Power | 6.7 / 156 | L / kW | |
| Displacement Standard | Euro III | ||
| Tire Model | 8.25R20 | ||
| Axle Base | 5 | m | |
| Quantity Of Axles | 2 | ||
| Max. Driving Speed | 90 | km/h | |
| Front Wheel Base | 1900 | mm | |
| Back Wheel Base | 1800 | mm | |
| Min. Turning Radius | 9 | m | |
| Pumping System | Diesel Engine Power | 186 | kW |
| Driving Mode | Hydraulic Driving | ||
| Oil Cylinder Inner Diameter × Stroke | Ф180×Ф125×1800 | mm | |
| Concrete Cylinder Inner Diameter × Stroke | Ф230×1800 | mm | |
| Oil Pressure Of System | 32 | MPa | |
| Switch Of H-Pressure And L-Pressure | Equipped | ||
| Fuel Tank Capacity | 290 | L | |
| Oil Tank Capacity | 600 | L | |
| Cooling Mode Of Hydraulic System | Fan Cooling | ||
| Max. Theoretical Capacity | H-Pressure: 55 | m³/h | |
| L-Pressure: 100 | |||
| Pumping Distance (H-Pressure) | Max. Horizontal: 880 | Using 125A Pipe (m) | |
| Max. Vertical: 220 | |||
| Hopper Capacity | 0.6 | m³ | |
| Feeding Height | ≤1500 | mm | |
| Concrete Slump | 14~23 | cm | |
| Max. Aggregate Diameter | Crushed Stone: 40 | mm | |
| Pebble: 50 | |||
| Valve | S Valve | ||
| Water Pump For Cleaning | Equipped | ||
| Concrete Pipe Cleaning Mode | Water Cleaning | ||
| Water Tank Capacity | 400 | L | |
| Lubrication Mode | Automatic | ||
| Overall Dimension | Length × Width × Height | 9195 × 2458 × 2623 | mm |
| Full-Load Total Weight | 13500 | kg |
Running Principle of Concrete Line Pump Truck
The whole equipment adopts a closed hydraulic circulation driving mode. Hydraulic power pushes concrete to flow steadily inside the conveying pipeline to realize a continuous feeding operation. Operators can adjust the internal material conveying speed according to the actual construction progress on site. The overall transmission structure runs smoothly and effectively reduces energy loss during long-time continuous operation.
Overall Structure and Practical Design Details
- Integrated track base strengthens the whole machine’s trafficability on complex ground
- Side layout operation console facilitates staff to monitor the real-time running state
- The independent heat dissipation structure effectively avoids high-temperature shutdown in hot weather
- The detachable outer protective shell simplifies daily internal inspection and simple troubleshooting
- Optimized internal pipeline layout reduces concrete residue accumulation effectively

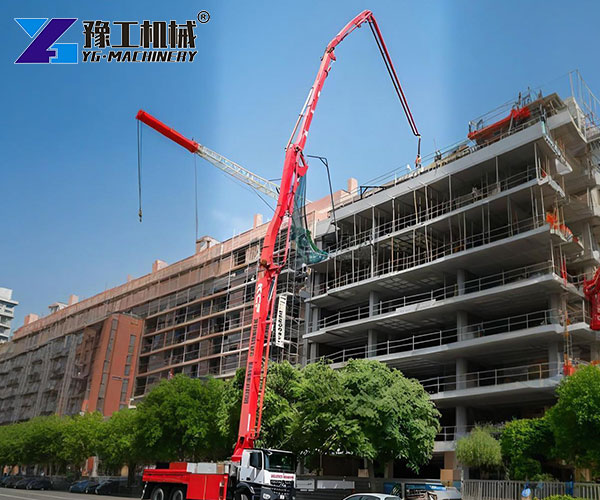

Wide Application Fields of Cement Boom Truck
- Rural road reconstruction and public infrastructure construction
- Mountain water conservancy project concrete filling operation
- Foundation pouring of scattered residential buildings in the suburbs
- Rapid concrete distribution of temporary construction sites
- Foundation treatment of remote off-road engineering projects
Daily Operating Consumption and Procurement Cost Analysis
- Fuel consumption stays steady during standard running sessions of the crawler concrete pump
- The extended service life of core wearing parts cuts down repeated replacement expenditure
- No dedicated fixed foundation is required for equipment placement
- Extra expense spent on site reconstruction can be fully saved for the construction teams
Long-term Operating Effect and Actual Income Improvement
- The whole construction schedule moves forward at a smoother pace
- Fewer auxiliary staff are needed to finish the matching of working procedures
- Daily labor expenditure is well controlled within the planned range
- An unplanned halt caused by mechanical faults can be largely avoided
Practical Purchasing Selection Tips for Global Buyers
- Check the mainstream landform of local construction sites, and confirm the matched traffic passing performance
- Work out the average daily concrete pouring volume, so as to select the proper power configuration
- Learn about local maintenance conditions and accessory supply channels, and choose equipment with better regional compatibility
Real Overseas Customer Cooperation Case
A local construction enterprise in Australia contacted us through the official website to consult on concrete pumping equipment. Most of their construction projects are distributed in hilly suburban areas, and traditional wheeled pumping equipment cannot reach the construction site smoothly. After comparing many types of boom pump trucks for sale in the market, they finally decided to purchase a standard crawler concrete pump.
The goods were shipped on time and smoothly passed the customs clearance of the destination port. After the equipment arrived at the site, our technical staff completed remote installation guidance and equipment debugging work.
The equipment adapts well to local complex construction environments after formal commissioning. After more than one month of stable operation, the equipment can pass through uneven dirt roads and gentle slope sites smoothly. It brings many practical improvements to daily construction work. The daily effective working time is increased by nearly 2.8 hours. The frequency of pipeline blockage is significantly reduced, and the daily maintenance workload is reduced by half. The customer gives high recognition to its terrain adaptability and stable operating performance.
Classified Practical FAQ
Q: Can a crawler concrete pump work normally in rainy, muddy sites?
A: Widened track design enhances ground gripping force, suitable for temporary muddy construction ground.
Q: Does the equipment need a complex fixed installation before use?
A: Only a simple position adjustment is needed; no complicated fixed installation is required.
Q: What is the key daily maintenance work?
A: Clean residual concrete in pipelines regularly and check the tightness of hydraulic connecting parts.
Q: Is it convenient to buy matching accessories locally?
A: Most accessories adopt international general specifications, easy to purchase replacement parts locally.
YG Machinery Brand Strength and Main Product Line
We own over 20 years of experience in construction machinery production and global export business.
- All finished machines hold official CE certification to satisfy international market entry standards
- Professional one-on-one pre-project consultation is available for all overseas clients
- Customized structure and parameter modification can meet diverse site working demands
- Complete cross-border technical support and after-sales service cover all cooperation regions
If you need more construction machines to match your on-site working layout, you can check out our other mainstream products. Apart from crawler concrete pump, we also offer a full series of matching construction equipment, including concrete mixing pump and self-loading mixer truck, to fulfill one-stop procurement needs from global builders.
